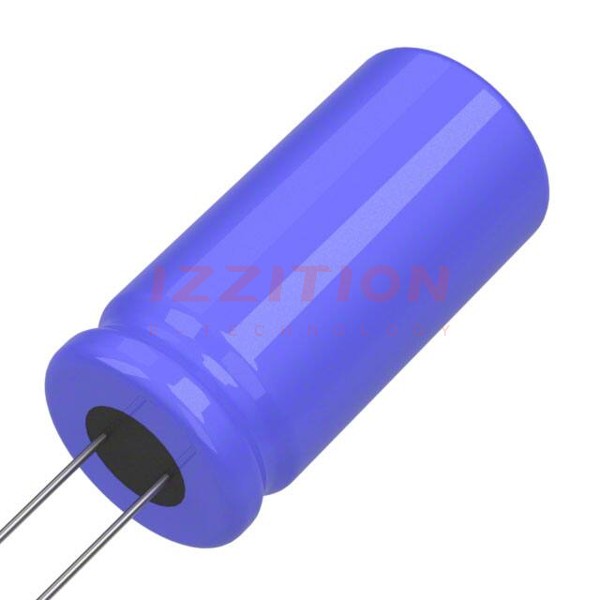

| Part Number | 672D108H015ET5D | 672D108F015ET5D | 672D108H015ET5C |
|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active |
| Capacitance | 1000 µF | 1000 µF | 1000 µF |
| Tolerance | - | -10%, +50% | - |
| Voltage - Rated | 15 V | 15 V | 15 V |
| ESR (Equivalent Series Resistance) | - | 120mOhm @ 120Hz | - |
| Lifetime @ Temp. | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | - | 2.03 A @ 120 Hz | - |
| Ripple Current @ High Frequency | - | 2.9 A @ 100 kHz | - |
| Impedance | - | 55 mOhms | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.417" (36.00mm) | 1.417" (36.00mm) | 1.417" (36.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
