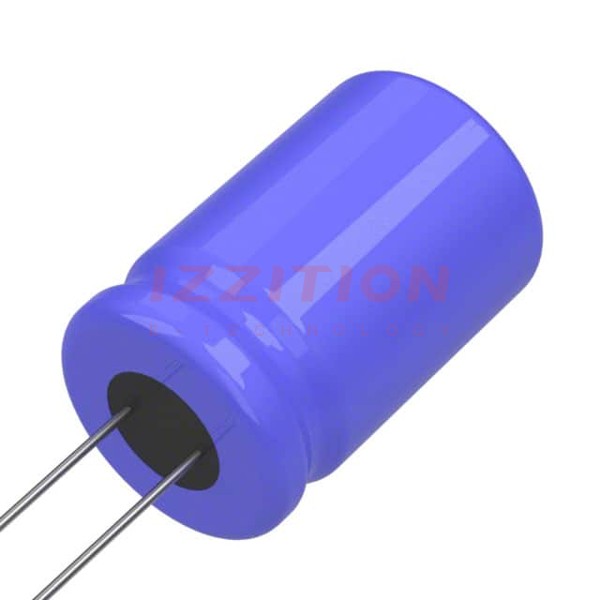

Vishay Sprague-672D108F6R3EK5D - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	1000 µF
Tolerance:	-10%, +50%
Voltage - Rated:	6.3 V
ESR (Equivalent Series Resistance):	160mOhm @ 120Hz
Lifetime @ Temp.:	-
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	1.435 A @ 120 Hz
Ripple Current @ High Frequency:	2.05 A @ 100 kHz
Impedance:	-
Lead Spacing:	0.295" (7.50mm)
Size / Dimension:	0.630" Dia (16.00mm)
Height - Seated (Max):	1.098" (27.90mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Vishay Sprague 672D108F6R3EK5D
