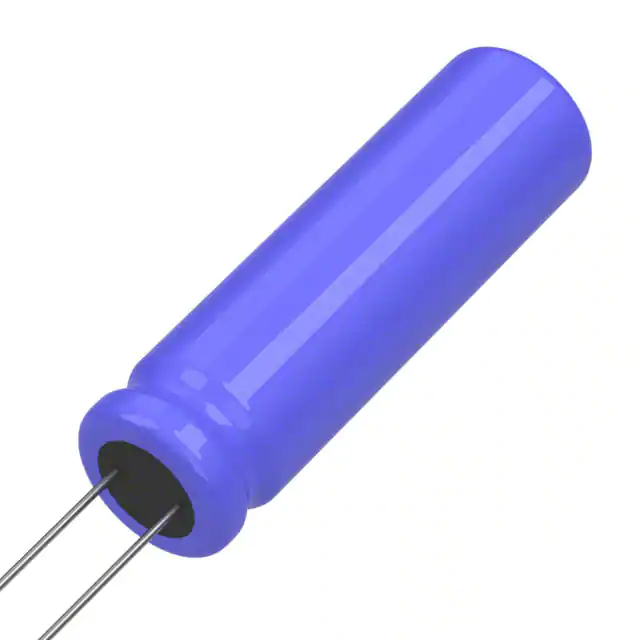

| Part Number | 672D108F012DS4D | 672D108F012DS5D |
|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active |
| Capacitance | 1000 µF | 1000 µF |
| Tolerance | -10%, +50% | -10%, +50% |
| Voltage - Rated | 12 V | 12 V |
| ESR (Equivalent Series Resistance) | 150mOhm @ 120Hz | 150mOhm @ 120Hz |
| Lifetime @ Temp. | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.645 A @ 120 Hz | 1.645 A @ 120 Hz |
| Ripple Current @ High Frequency | 235 mA @ 100 kHz | 235 mA @ 100 kHz |
| Impedance | 60 mOhms | 60 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.720" (43.70mm) | 1.791" (45.50mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
