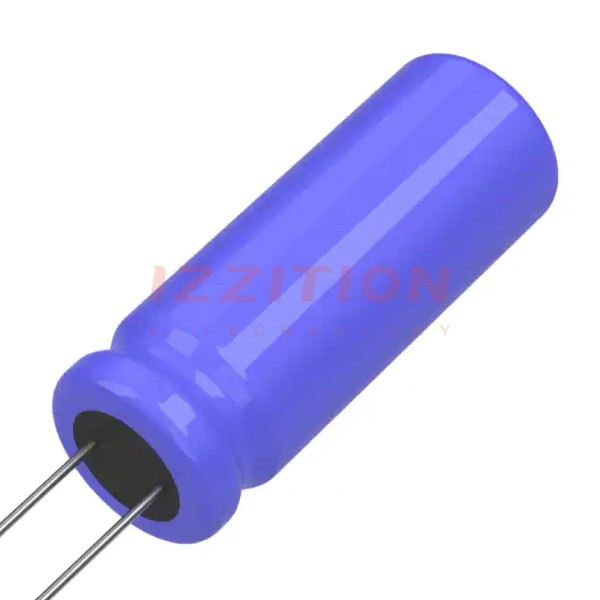

Vishay Sprague-672D107F050DT5D - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	100 µF
Tolerance:	-10%, +50%
Voltage - Rated:	50 V
ESR (Equivalent Series Resistance):	800mOhm @ 120Hz
Lifetime @ Temp.:	-
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	805 mA @ 120 Hz
Ripple Current @ High Frequency:	1.15 A @ 100 kHz
Impedance:	220 mOhms
Lead Spacing:	0.197" (5.00mm)
Size / Dimension:	0.492" Dia (12.50mm)
Height - Seated (Max):	1.417" (36.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Vishay Sprague 672D107F050DT5D
