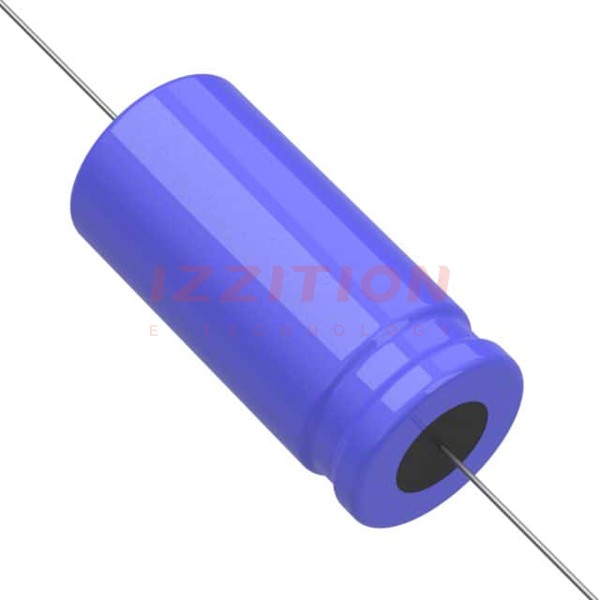

Vishay Sprague-601D568F025JL1 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	5600 µF
Tolerance:	-10%, +50%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	40mOhm @ 120Hz
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	4.96 A @ 120 Hz
Ripple Current @ High Frequency:	5.704 A @ 1 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	1.000" Dia x 2.125" L (25.40mm x 53.97mm)
Height - Seated (Max):	-
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Axial, Can

Vishay Sprague 601D568F025JL1
