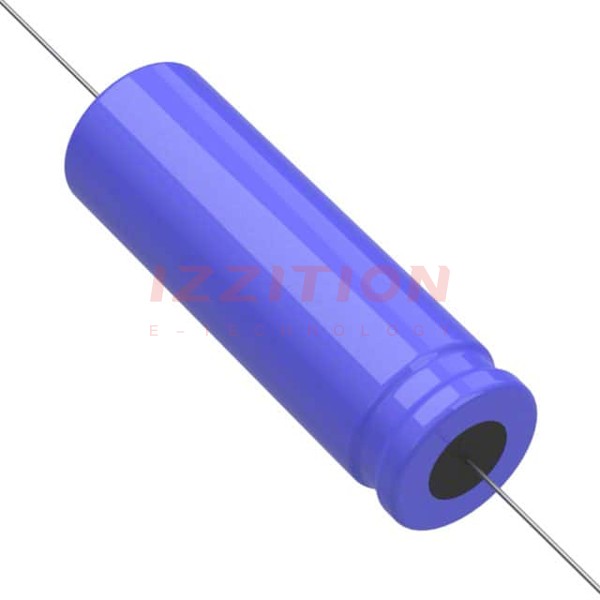

Vishay Sprague-601D558G040JS1 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	5500 µF
Tolerance:	-
Voltage - Rated:	40 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	4.76 A @ 120 Hz
Ripple Current @ High Frequency:	5.474 A @ 1 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	1.012" Dia x 3.142" L (25.70mm x 79.80mm)
Height - Seated (Max):	-
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Axial, Can

Vishay Sprague 601D558G040JS1
