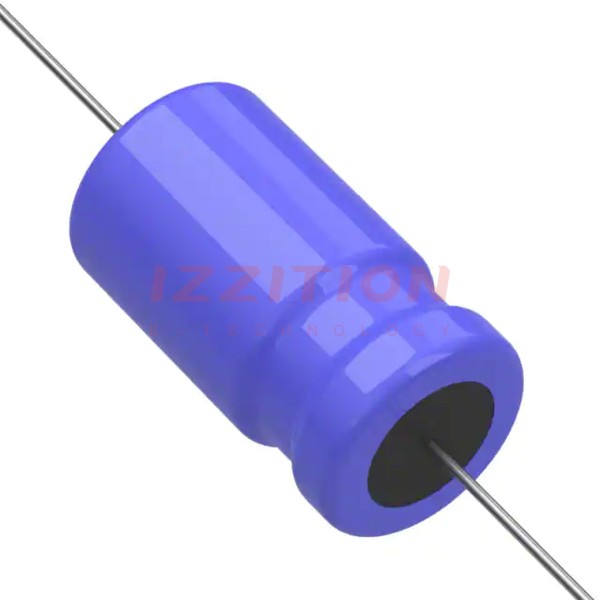

Vishay Sprague-601D506F150HE1 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	50 µF
Tolerance:	-10%, +50%
Voltage - Rated:	150 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	-
Ripple Current @ High Frequency:	-
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.886" Dia x 1.142" L (22.50mm x 29.00mm)
Height - Seated (Max):	-
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Axial, Can

Vishay Sprague 601D506F150HE1
