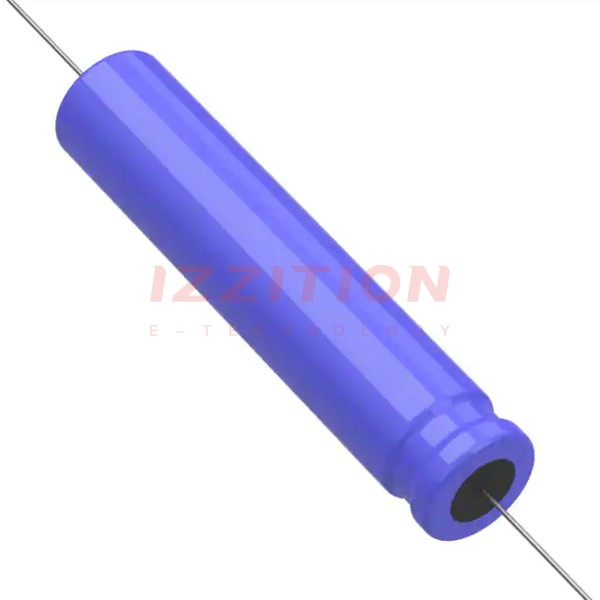

Vishay Sprague-601D339F6R3JT1 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	33000 µF
Tolerance:	-10%, +50%
Voltage - Rated:	6.3 V
ESR (Equivalent Series Resistance):	19mOhm @ 120Hz
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	8.98 A @ 120 Hz
Ripple Current @ High Frequency:	10.33 A @ 1 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	1.000" Dia x 3.625" L (25.40mm x 92.08mm)
Height - Seated (Max):	-
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Axial, Can

Vishay Sprague 601D339F6R3JT1
