Please send RFQ , we will respond immediately.

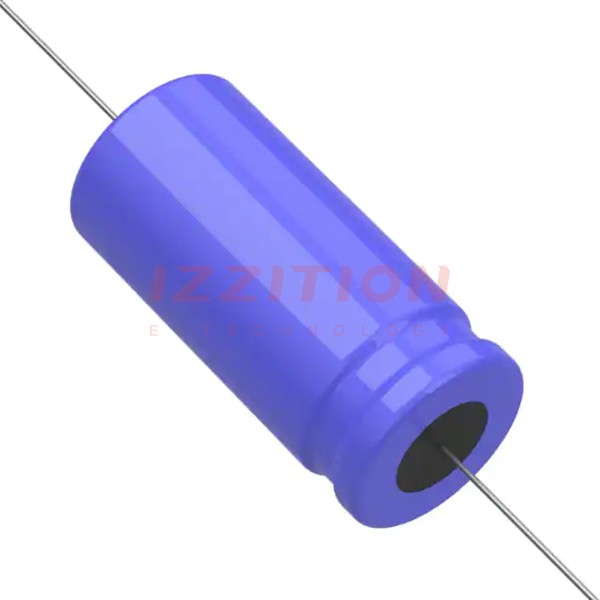

| Part Number | 601D337F150HP1 | 601D337F150HP3 |
|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active |
| Capacitance | 330 µF | 330 µF |
| Tolerance | -10%, +50% | -10%, +50% |
| Voltage - Rated | 150 V | 150 V |
| ESR (Equivalent Series Resistance) | 345mOhm @ 120Hz | 345mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.71 A @ 120 Hz | 1.71 A @ 120 Hz |
| Ripple Current @ High Frequency | - | 2.052 A @ 1 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.886" Dia x 2.642" L (22.50mm x 67.10mm) | 0.875" Dia x 2.625" L (22.22mm x 66.68mm) |
| Height - Seated (Max) | - | - |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Axial, Can | Axial, Can |
