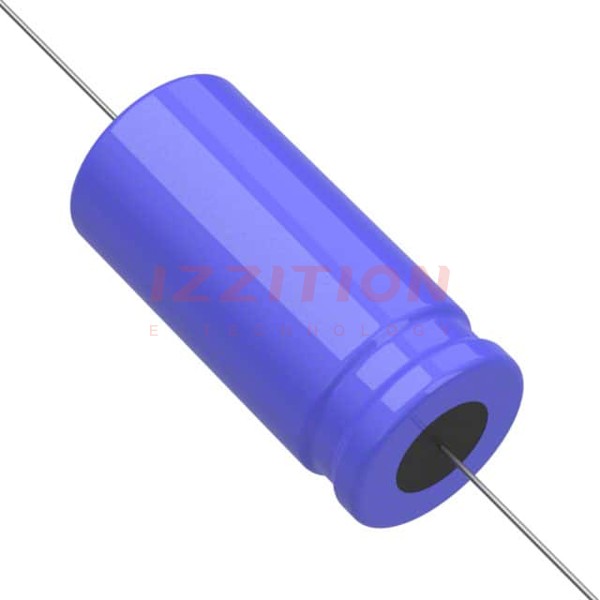

| Part Number | 601D277F200JL2 | 601D227F200JL2 |
|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active |
| Capacitance | 270 µF | 220 µF |
| Tolerance | -10%, +50% | -10%, +50% |
| Voltage - Rated | 200 V | 200 V |
| ESR (Equivalent Series Resistance) | 365mOhm @ 120Hz | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.65 A @ 120 Hz | - |
| Ripple Current @ High Frequency | 1.98 A @ 1 kHz | - |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 1.000" Dia x 2.125" L (25.40mm x 53.97mm) | 1.000" Dia x 2.125" L (25.40mm x 53.97mm) |
| Height - Seated (Max) | - | - |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Axial, Can | Axial, Can |
