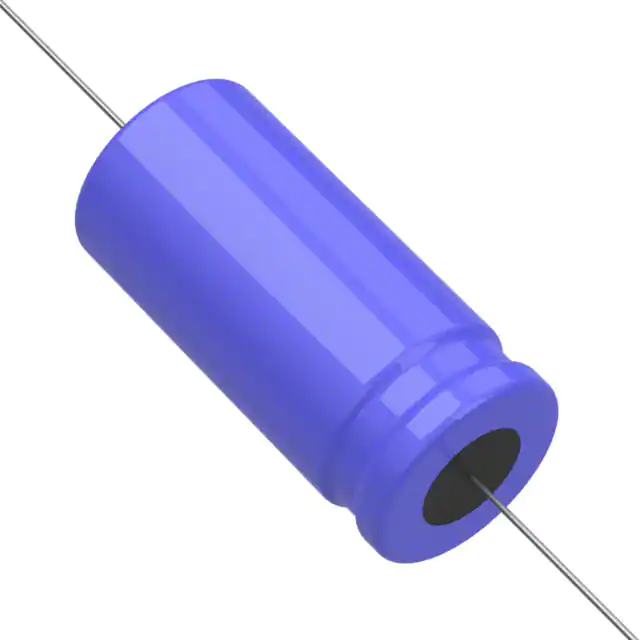

Vishay Sprague-601D157F300HP3 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	150 µF
Tolerance:	-10%, +50%
Voltage - Rated:	300 V
ESR (Equivalent Series Resistance):	679mOhm @ 120Hz
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	1.22 A @ 120 Hz
Ripple Current @ High Frequency:	1.464 A @ 1 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.875" Dia x 2.625" L (22.22mm x 66.68mm)
Height - Seated (Max):	-
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Axial, Can

Vishay Sprague 601D157F300HP3
