Vishay Sprague-601D108F100JP1 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	1000 µF
Tolerance:	-10%, +50%
Voltage - Rated:	100 V
ESR (Equivalent Series Resistance):	120mOhm @ 120Hz
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	3.14 A @ 120 Hz
Ripple Current @ High Frequency:	3.768 A @ 1 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	1.000" Dia x 2.625" L (25.40mm x 66.68mm)
Height - Seated (Max):	-
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Axial, Can

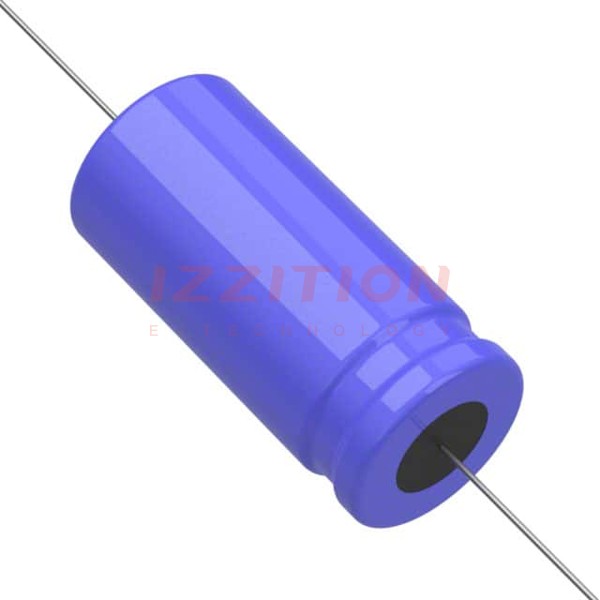

Vishay Sprague 601D108F100JP1
