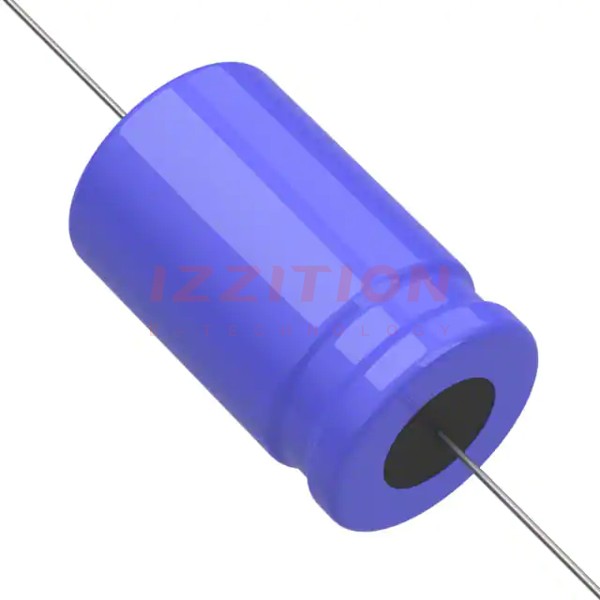

| Part Number | 601D108F050GJ2 | 601D108G050GJ2 | 601D108F050GJ1 |
|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active |
| Capacitance | 1000 µF | 1000 µF | 1000 µF |
| Tolerance | -10%, +50% | - | -10%, +50% |
| Voltage - Rated | 50 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | 139mOhm @ 120Hz | - | 139mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.02 A @ 120 Hz | - | 2.02 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.323 A @ 1 kHz | - | 2.323 A @ 1 kHz |
| Impedance | - | - | - |
| Lead Spacing | - | - | - |
| Size / Dimension | 0.750" Dia x 1.625" L (19.05mm x 41.28mm) | 0.750" Dia x 1.625" L (19.05mm x 41.28mm) | 0.750" Dia x 1.625" L (19.05mm x 41.28mm) |
| Height - Seated (Max) | - | - | - |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial, Can | Axial, Can | Axial, Can |
