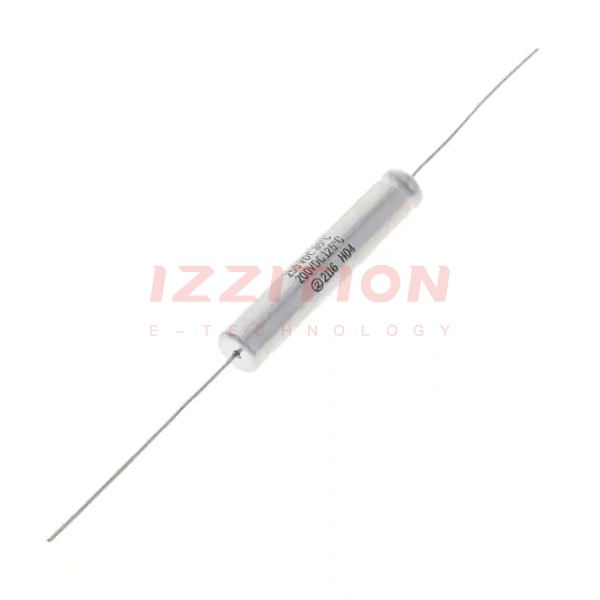

Vishay Sprague-600D226F250DL4 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	22 µF
Tolerance:	-10%, +50%
Voltage - Rated:	250 V
ESR (Equivalent Series Resistance):	5.75Ohm @ 120Hz
Lifetime @ Temp.:	-
Operating Temperature:	-55°C ~ 125°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	121 mA @ 120 Hz
Ripple Current @ High Frequency:	169.4 mA @ 1 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.375" Dia x 2.187" L (9.53mm x 55.56mm)
Height - Seated (Max):	-
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Axial, Can

Vishay Sprague 600D226F250DL4
