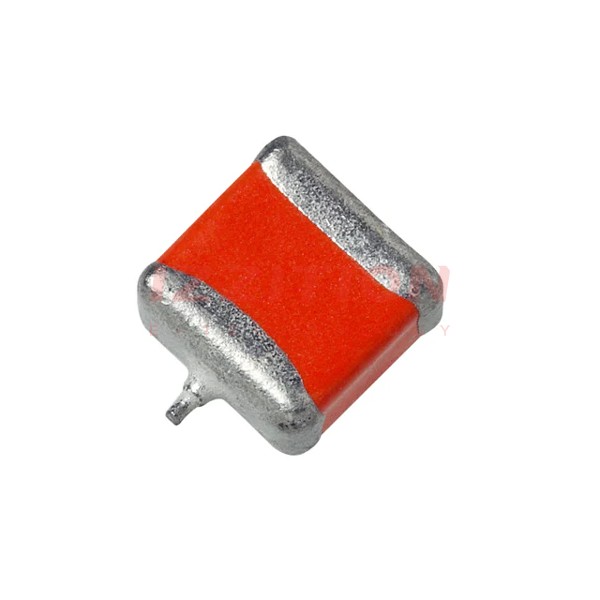

| Part Number | 595D226X9020C4T | 595D226X9020C8T | 595D226X9025C4T | 595D226X0020C4T | 595D226X9020B4T | 595D226X9020C2T |
|---|---|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 22 µF | 22 µF | 22 µF | 22 µF | 22 µF | 22 µF |
| Tolerance | ±10% | ±10% | ±10% | ±20% | ±10% | ±10% |
| Voltage - Rated | 20 V | 20 V | 25 V | 20 V | 20 V | 20 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 380mOhm | 380mOhm | 500mOhm | 380mOhm | 900mOhm | 380mOhm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2812 (7132 Metric) | 2812 (7132 Metric) | 2812 (7132 Metric) | 2812 (7132 Metric) | 1611 (4028 Metric) | 2812 (7132 Metric) |
| Size / Dimension | 0.280" L x 0.126" W (7.10mm x 3.20mm) | 0.280" L x 0.126" W (7.10mm x 3.20mm) | 0.280" L x 0.126" W (7.10mm x 3.20mm) | 0.280" L x 0.126" W (7.10mm x 3.20mm) | 0.157" L x 0.110" W (4.00mm x 2.80mm) | 0.280" L x 0.126" W (7.10mm x 3.20mm) |
| Height - Seated (Max) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.110" (2.80mm) | 0.087" (2.20mm) | 0.110" (2.79mm) |
| Lead Spacing | - | - | - | - | - | - |
| Manufacturer Size Code | C | C | C | C | B | C |
| Ratings | - | - | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - |
