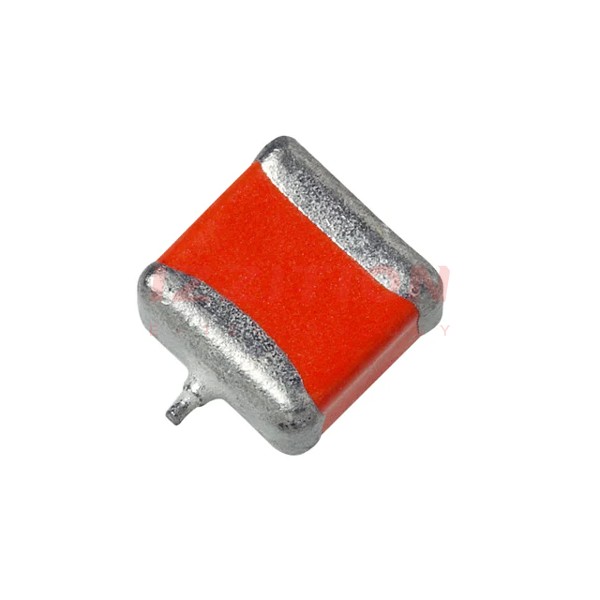

| Part Number | 595D156X0010A2T | 595D156X0016A2T | 595D156X9010A2T | 595D156X0010B2T | 595D156X0010A8T |
|---|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 15 µF | 15 µF | 15 µF | 15 µF | 15 µF |
| Tolerance | ±20% | ±20% | ±10% | ±20% | ±20% |
| Voltage - Rated | 10 V | 16 V | 10 V | 10 V | 10 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 1.8Ohm | 2.4Ohm | 1.8Ohm | 670mOhm | 1.8Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1507 (3718 Metric) | 1507 (3718 Metric) | 1507 (3718 Metric) | 1611 (4028 Metric) | 1507 (3718 Metric) |
| Size / Dimension | 0.146" L x 0.071" W (3.70mm x 1.80mm) | 0.146" L x 0.071" W (3.70mm x 1.80mm) | 0.146" L x 0.071" W (3.70mm x 1.80mm) | 0.157" L x 0.110" W (4.00mm x 2.80mm) | 0.146" L x 0.071" W (3.70mm x 1.80mm) |
| Height - Seated (Max) | 0.068" (1.73mm) | 0.068" (1.73mm) | 0.068" (1.73mm) | 0.087" (2.20mm) | 0.067" (1.70mm) |
| Lead Spacing | - | - | - | - | - |
| Manufacturer Size Code | A | A | A | B | A |
| Ratings | - | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - |
