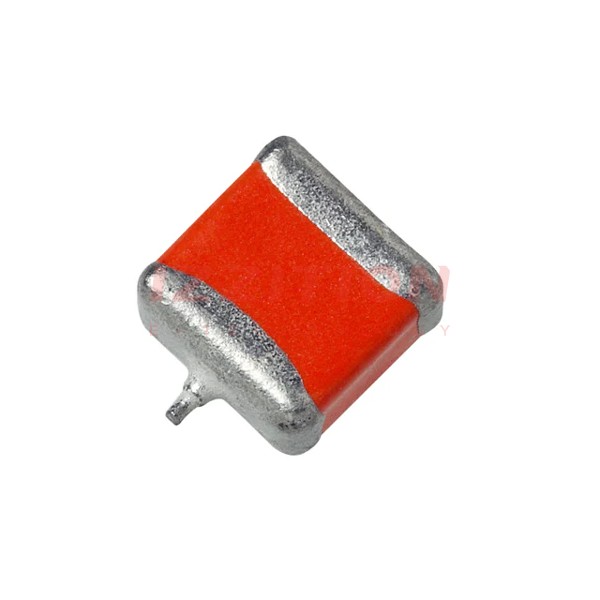

| Part Number | 595D107X9020R8T | 595D127X9020R8T | 595D107X9025R8T | 595D107X9020D8T | 595D107X9020R2T |
|---|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 100 µF | 120 µF | 100 µF | 100 µF | 100 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 20 V | 20 V | 25 V | 20 V | 20 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 140mOhm | 140mOhm | 200mOhm | 180mOhm | 140mOhm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2824 (7260 Metric) | 2824 (7260 Metric) | 2824 (7260 Metric) | 2917 (7343 Metric) | 2824 (7260 Metric) |
| Size / Dimension | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.295" L x 0.169" W (7.50mm x 4.30mm) | 0.283" L x 0.236" W (7.20mm x 6.00mm) |
| Height - Seated (Max) | 0.150" (3.80mm) | 0.150" (3.80mm) | 0.150" (3.80mm) | 0.122" (3.10mm) | 0.148" (3.75mm) |
| Lead Spacing | - | - | - | - | - |
| Manufacturer Size Code | R | R | R | D | R |
| Ratings | - | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - |
