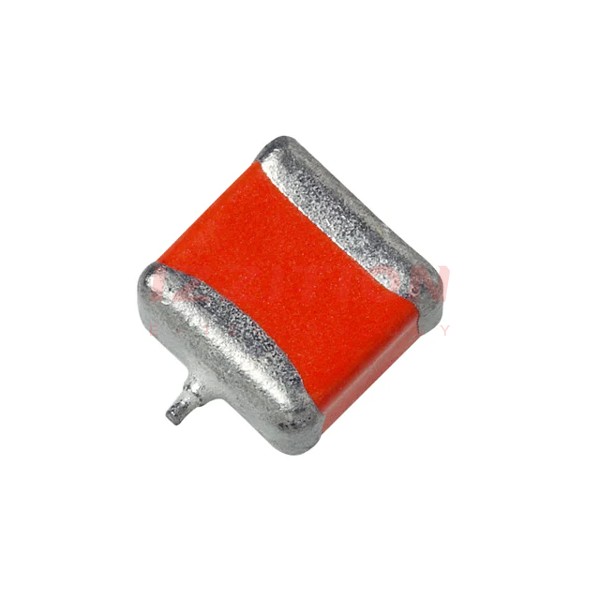

| Part Number | 595D107X0010D2T | 595D107X0016D2T | 595D107X0020D2T | 595D107X0010D2W | 595D107X9010D2T | 595D127X0010D2T | 595D107X0010B2T | 595D107X0010C2T |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 100 µF | 100 µF | 100 µF | 100 µF | 100 µF | 120 µF | 100 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±10% | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 16 V | 20 V | 10 V | 10 V | 10 V | 10 V | 10 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 150mOhm | 140mOhm | 180mOhm | 150mOhm | 150mOhm | 140mOhm | 400mOhm | 200mOhm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) | 2917 (7343 Metric) | 1611 (4028 Metric) | 2812 (7132 Metric) |
| Size / Dimension | 0.295" L x 0.169" W (7.50mm x 4.30mm) | 0.295" L x 0.169" W (7.50mm x 4.30mm) | 0.295" L x 0.169" W (7.50mm x 4.30mm) | 0.295" L x 0.169" W (7.50mm x 4.30mm) | 0.295" L x 0.169" W (7.50mm x 4.30mm) | 0.295" L x 0.169" W (7.50mm x 4.30mm) | 0.157" L x 0.110" W (4.00mm x 2.80mm) | 0.280" L x 0.126" W (7.10mm x 3.20mm) |
| Height - Seated (Max) | 0.122" (3.10mm) | 0.122" (3.10mm) | 0.122" (3.10mm) | 0.122" (3.10mm) | 0.122" (3.10mm) | 0.122" (3.10mm) | 0.087" (2.20mm) | 0.110" (2.79mm) |
| Lead Spacing | - | - | - | - | - | - | - | - |
| Manufacturer Size Code | D | D | D | D | D | D | B | C |
| Ratings | - | - | - | - | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - | - |
