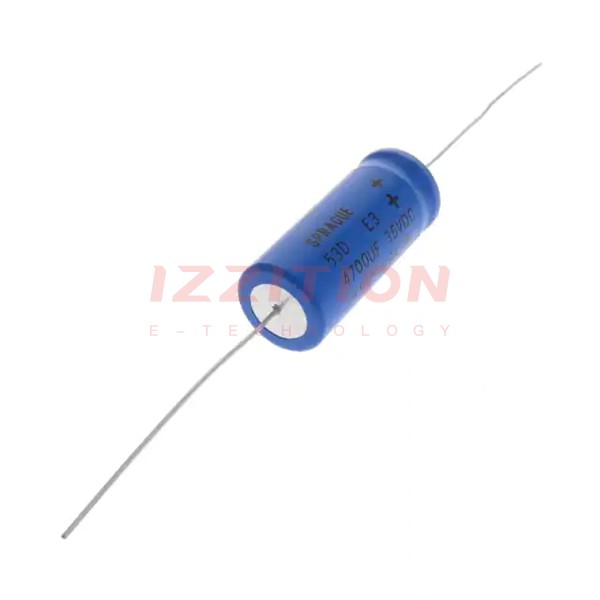

Vishay Sprague-53D472G035HL6E3 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	4700 µF
Tolerance:	-10%, +75%
Voltage - Rated:	35 V
ESR (Equivalent Series Resistance):	54mOhm @ 120Hz
Lifetime @ Temp.:	1000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	2.78 A @ 120 Hz
Ripple Current @ High Frequency:	3.197 A @ 1 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.886" Dia x 2.142" L (22.50mm x 54.40mm)
Height - Seated (Max):	-
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Axial, Can

Vishay Sprague 53D472G035HL6E3
