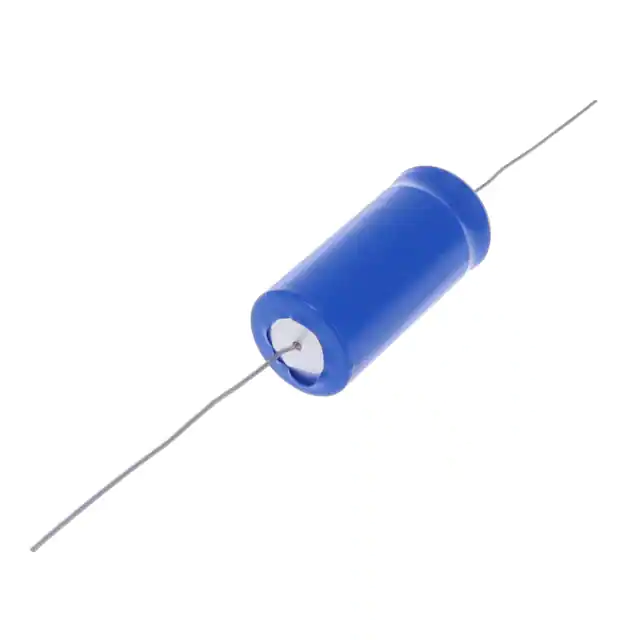

Vishay Sprague-53D351F200JL6 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	350 µF
Tolerance:	-10%, +50%
Voltage - Rated:	200 V
ESR (Equivalent Series Resistance):	499mOhm @ 120Hz
Lifetime @ Temp.:	1000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	1 A @ 120 Hz
Ripple Current @ High Frequency:	1.2 A @ 1 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	1.012" Dia x 2.142" L (25.70mm x 54.40mm)
Height - Seated (Max):	-
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Axial, Can

Vishay Sprague 53D351F200JL6
