Vishay Sprague-53D222G063HL6 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	2200 µF
Tolerance:	-10%, +75%
Voltage - Rated:	63 V
ESR (Equivalent Series Resistance):	86mOhm @ 120Hz
Lifetime @ Temp.:	1000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	2.21 A @ 120 Hz
Ripple Current @ High Frequency:	2.652 A @ 1 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.886" Dia x 2.142" L (22.50mm x 54.40mm)
Height - Seated (Max):	-
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Axial, Can

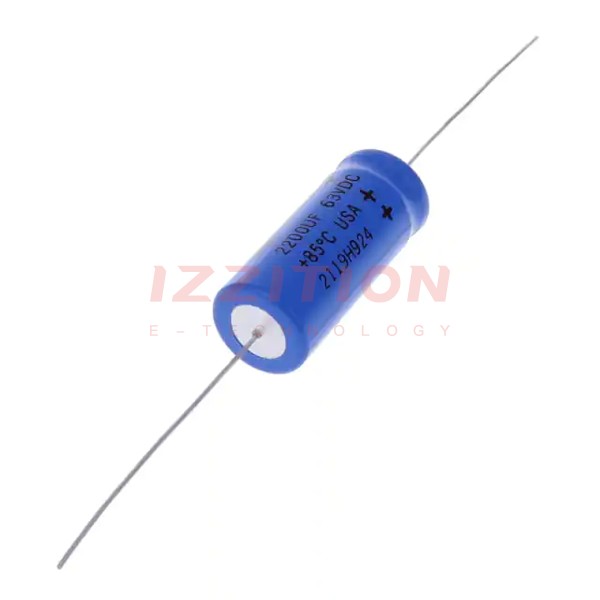

Vishay Sprague 53D222G063HL6
