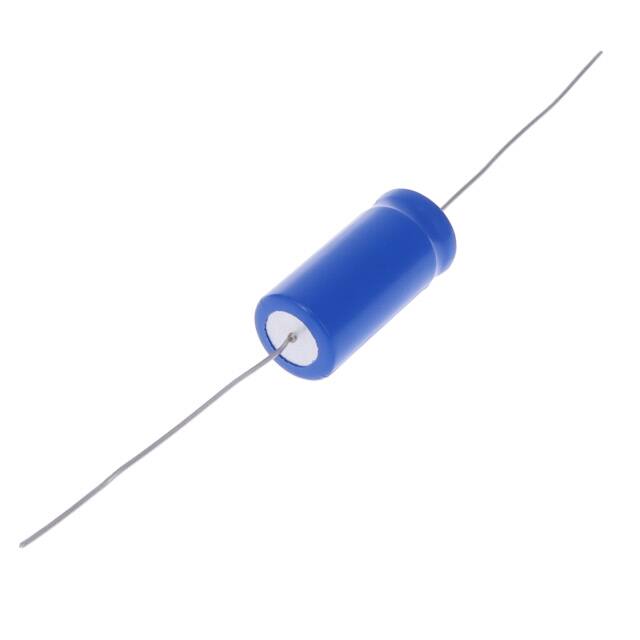

Vishay Sprague-53D101F250GJ6 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	100 µF
Tolerance:	-10%, +50%
Voltage - Rated:	250 V
ESR (Equivalent Series Resistance):	1.593Ohm @ 120Hz
Lifetime @ Temp.:	1000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	420 mA @ 120 Hz
Ripple Current @ High Frequency:	504 mA @ 1 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.760" Dia x 1.642" L (19.30mm x 41.70mm)
Height - Seated (Max):	-
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Axial, Can

Vishay Sprague 53D101F250GJ6
