Vishay Sprague-39D257G075JE6 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	250 µF
Tolerance:	-10%, +75%
Voltage - Rated:	75 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	500 Hrs @ 85°C
Operating Temperature:	-20°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	-
Ripple Current @ High Frequency:	-
Impedance:	-
Lead Spacing:	-
Size / Dimension:	1.012" Dia x 1.142" L (25.70mm x 29.00mm)
Height - Seated (Max):	-
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Axial, Can

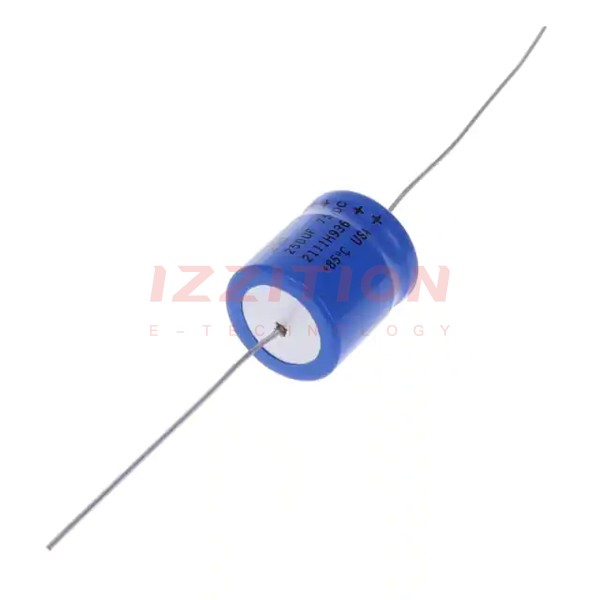

Vishay Sprague 39D257G075JE6
