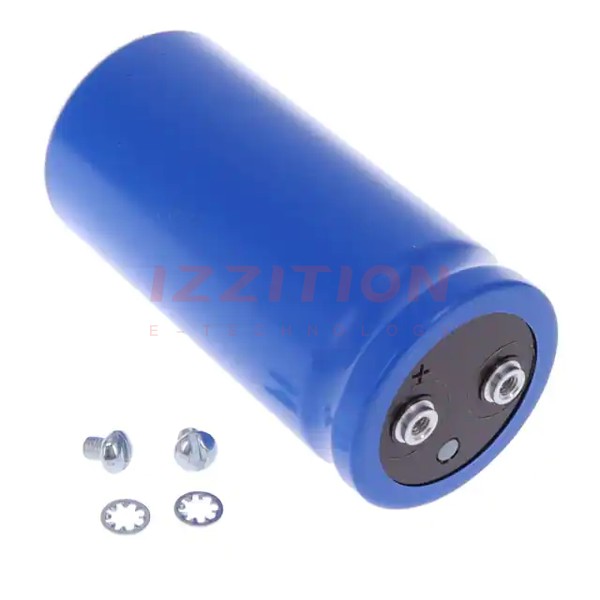

Vishay Sprague-36DX202F200BC2A - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	2000 µF
Tolerance:	-10%, +50%
Voltage - Rated:	200 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	1000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	-
Ripple Current @ High Frequency:	-
Impedance:	-
Lead Spacing:	0.875" (22.22mm)
Size / Dimension:	2.079" Dia (52.80mm)
Height - Seated (Max):	4.252" (108.00mm)
Surface Mount Land Size:	-
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can - Screw Terminals

Vishay Sprague 36DX202F200BC2A
