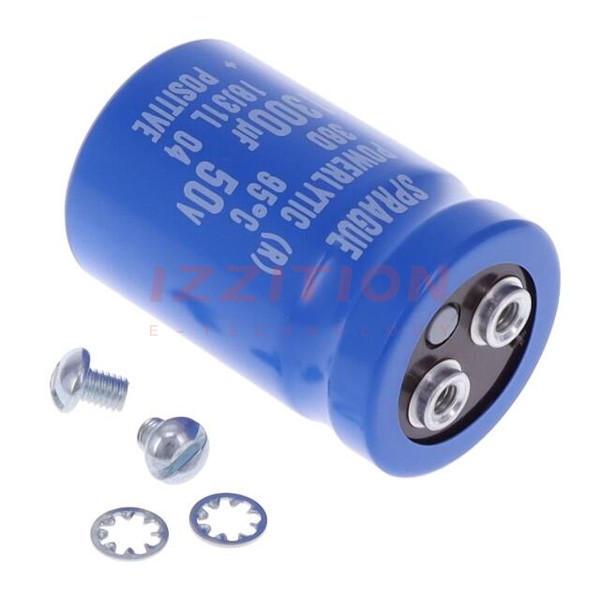

Vishay Sprague-36D132G050AA2A - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	1300 µF
Tolerance:	-10%, +75%
Voltage - Rated:	50 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	1000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	-
Ripple Current @ High Frequency:	-
Impedance:	-
Lead Spacing:	0.500" (12.70mm)
Size / Dimension:	1.453" Dia (36.90mm)
Height - Seated (Max):	2.252" (57.20mm)
Surface Mount Land Size:	-
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can - Screw Terminals

Vishay Sprague 36D132G050AA2A
