Please send RFQ , we will respond immediately.

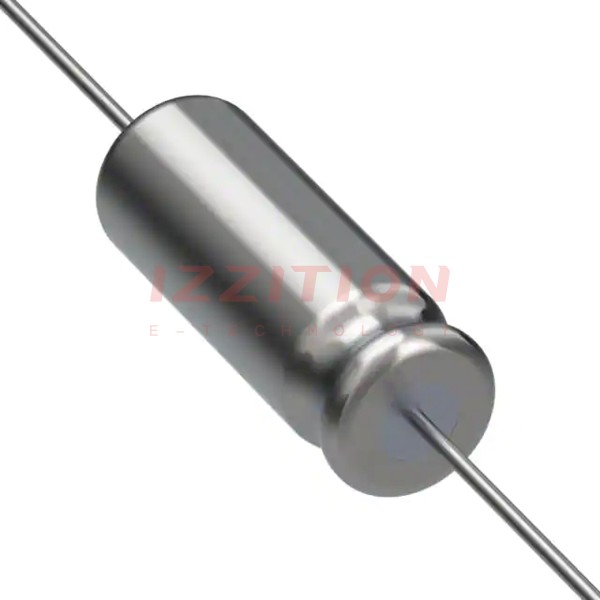

| Part Number | 30D156M040BA5A | 30D156M040BA5T | 30D156M040BA6A | 30D156M040BA2A |
|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active | Active |
| Capacitance | 15 µF | 15 µF | 15 µF | 15 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 40 V | 40 V | 40 V | 40 V |
| ESR (Equivalent Series Resistance) | 17.6Ohm @ 120Hz | 17.6Ohm @ 120Hz | 17.6Ohm @ 120Hz | 17.6Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 58 mA @ 120 Hz | 58 mA @ 120 Hz | 58 mA @ 120 Hz | 58 mA @ 120 Hz |
| Ripple Current @ High Frequency | 81.2 mA @ 100 kHz | 81.2 mA @ 100 kHz | 81.2 mA @ 100 kHz | 81.2 mA @ 100 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) | 0.248" Dia x 0.512" L (6.30mm x 13.00mm) |
| Height - Seated (Max) | - | - | - | - |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial, Can | Axial, Can | Axial, Can | Axial, Can |
