Please send RFQ , we will respond immediately.

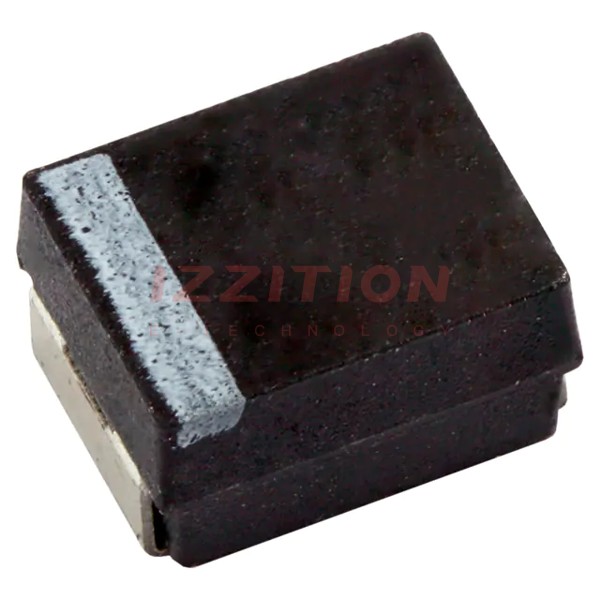

| Part Number | 293D106X9025B2TE3 | 293D106X9025C2TE3 | 293D106X9025D2TE3 | 293D105X9025B2TE3 | 293D106X9020B2TE3 |
|---|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 10 µF | 10 µF | 10 µF | 1 µF | 10 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 25 V | 25 V | 25 V | 25 V | 20 V |
| Type | Molded | Molded | Molded | Molded | Molded |
| ESR (Equivalent Series Resistance) | 2.3Ohm @ 100kHz | 1.5Ohm | 1Ohm | 5Ohm | 2.1Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1411 (3528 Metric) | 2312 (6032 Metric) | 2917 (7343 Metric) | 1411 (3528 Metric) | 1411 (3528 Metric) |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Height - Seated (Max) | 0.083" (2.10mm) | 0.110" (2.79mm) | 0.122" (3.10mm) | 0.083" (2.11mm) | 0.083" (2.11mm) |
| Lead Spacing | - | - | - | - | - |
| Manufacturer Size Code | B | C | D | B | B |
| Ratings | - | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - |
