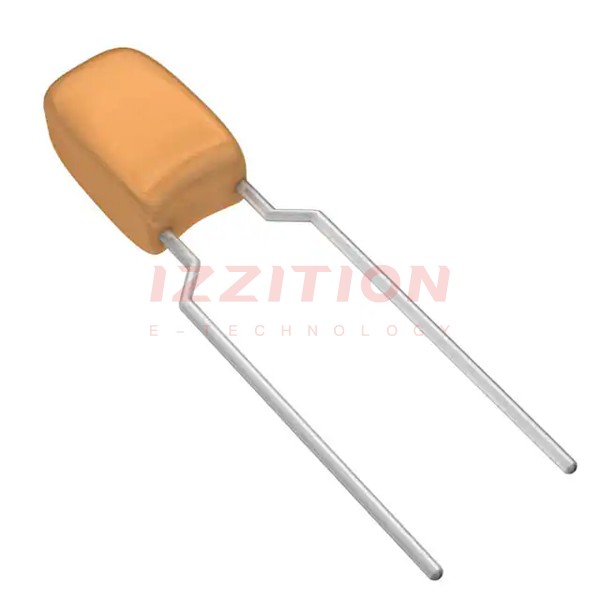

| Part Number | 199D156X9025D6V1E3 | 199D156X9025DXV1E3 | 199D156X9025D7V1E3 | 199D156X0025D6V1E3 | 199D156X9020D6V1E3 | 199D156X9025D1V1E3 | 199D156X9025D2V1E3 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 15 µF | 15 µF | 15 µF | 15 µF | 15 µF | 15 µF | 15 µF |
| Tolerance | ±10% | ±10% | ±10% | ±20% | ±10% | ±10% | ±10% |
| Voltage - Rated | 25 V | 25 V | 25 V | 25 V | 20 V | 25 V | 25 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) |
| Height - Seated (Max) | 0.498" (12.66mm) | 0.460" (11.68mm) | 0.498" (12.66mm) | 0.498" (12.66mm) | 0.498" (12.66mm) | 0.400" (10.16mm) | 0.400" (10.16mm) |
| Lead Spacing | 0.200" (5.08mm) | 0.100" (2.54mm) | 0.250" (6.35mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Manufacturer Size Code | D | D | D | D | D | D | D |
| Ratings | - | - | - | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - |
