Vishay Sprague-199D156X0016C1V1E3 - Tantalum Capacitors Product Specifications and Latest Quotes

Part Number	199D156X0016C1V1E3	199D156X9016C1V1E3	199D156X0016C2V1E3	199D156X0016C6V1E3	199D156X0016CXV1E3
Manufacturer	Vishay Sprague	Vishay Sprague	Vishay Sprague	Vishay Sprague	Vishay Sprague
Product Status	Active	Active	Active	Active	Active
Capacitance	15 µF	15 µF	15 µF	15 µF	15 µF
Tolerance	±20%	±10%	±20%	±20%	±20%
Voltage - Rated	16 V	16 V	16 V	16 V	16 V
Type	Conformal Coated	Conformal Coated	Conformal Coated	Conformal Coated	Conformal Coated
ESR (Equivalent Series Resistance)	-	-	-	-	-
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Lifetime @ Temp.	1000 Hrs @ 85°C	1000 Hrs @ 85°C	1000 Hrs @ 85°C	1000 Hrs @ 85°C	1000 Hrs @ 85°C
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	Radial	Radial	Radial	Radial	Radial
Size / Dimension	0.217" Dia (5.50mm)	0.217" Dia (5.50mm)	0.217" Dia (5.50mm)	0.217" Dia (5.50mm)	0.217" Dia (5.50mm)
Height - Seated (Max)	0.360" (9.14mm)	0.360" (9.14mm)	0.360" (9.14mm)	0.458" (11.64mm)	0.420" (10.66mm)
Lead Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.200" (5.08mm)	0.100" (2.54mm)
Manufacturer Size Code	C	C	C	C	C
Ratings	-	-	-	-	-
Features	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Failure Rate	-	-	-	-	-

Capacitance:	15 µF
Tolerance:	±20%
Voltage - Rated:	16 V
Type:	Conformal Coated
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 125°C
Lifetime @ Temp.:	1000 Hrs @ 85°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.217" Dia (5.50mm)
Height - Seated (Max):	0.360" (9.14mm)
Lead Spacing:	0.100" (2.54mm)
Manufacturer Size Code:	C
Ratings:	-
Features:	General Purpose
Failure Rate:	-

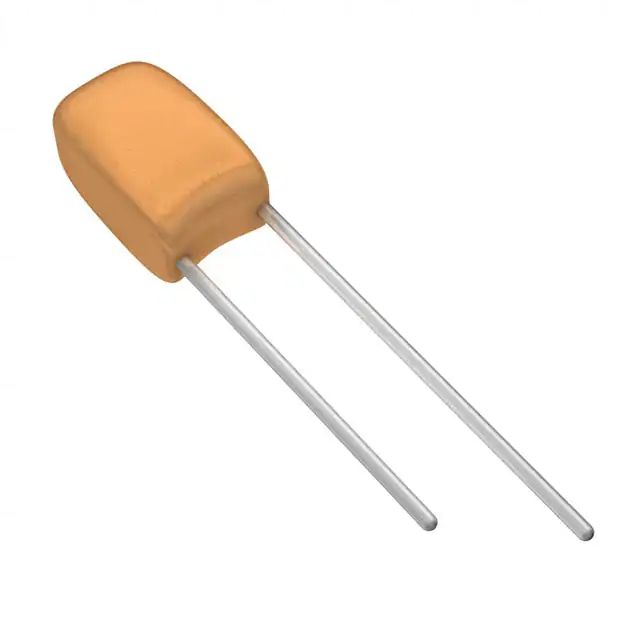

Vishay Sprague 199D156X0016C1V1E3
