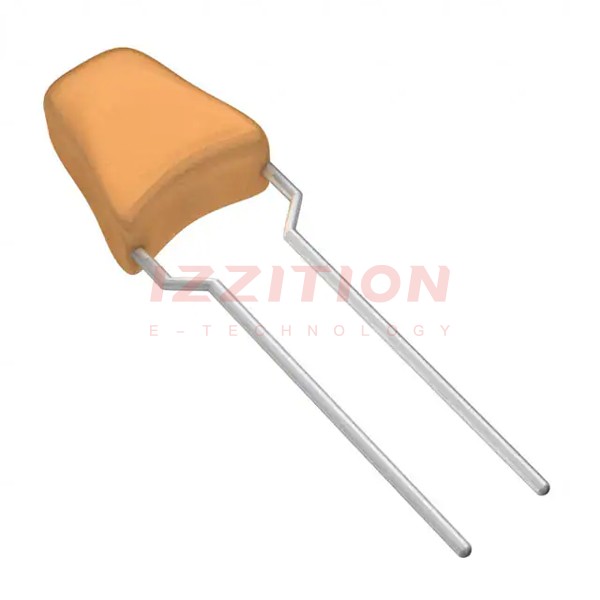

| Part Number | 199D106X0020CXV1E3 | 199D106X9020CXV1E3 | 199D106X0025CXV1E3 | 199D106X5020CXV1E3 | 199D106X0020C1V1E3 | 199D106X0020C2V1E3 | 199D106X0020C6V1E3 | 199D106X0020C7V1E3 | 199D106X0020CXB1E3 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF |
| Tolerance | ±20% | ±10% | ±20% | ±5% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 20 V | 20 V | 25 V | 20 V | 20 V | 20 V | 20 V | 20 V | 20 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.217" Dia (5.50mm) | 0.217" Dia (5.50mm) | 0.217" Dia (5.50mm) | 0.217" Dia (5.50mm) | 0.217" Dia (5.50mm) | 0.217" Dia (5.50mm) | 0.217" Dia (5.50mm) | 0.217" Dia (5.50mm) | 0.217" Dia (5.50mm) |
| Height - Seated (Max) | 0.420" (10.66mm) | 0.420" (10.66mm) | 0.420" (10.66mm) | 0.420" (10.66mm) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.458" (11.64mm) | 0.458" (11.64mm) | 0.420" (10.66mm) |
| Lead Spacing | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.200" (5.08mm) | 0.250" (6.35mm) | 0.100" (2.54mm) |
| Manufacturer Size Code | C | C | C | C | C | C | C | C | C |
| Ratings | - | - | - | - | - | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - | - | - |
