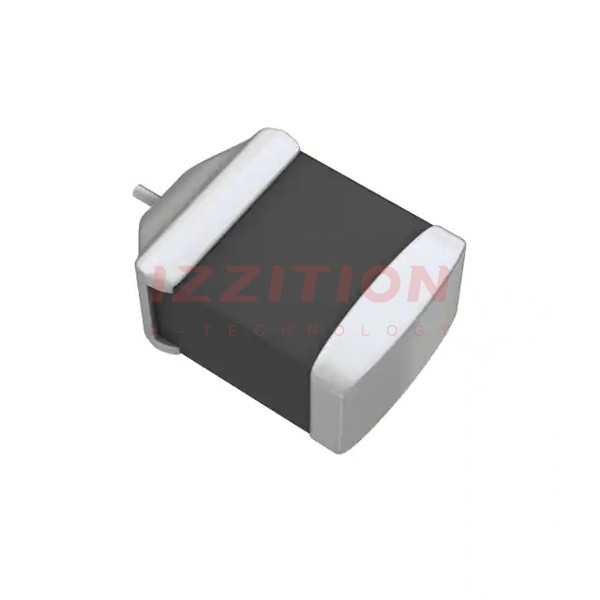

| Part Number | 195D105X9020S2T | 195D105X9025S2T | 195D155X9020S2T | 195D105X9020S4T | 195D105X0020S2T | 195D105X9010S2T | 195D105X9020B2T |
|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1 µF | 1 µF | 1.5 µF | 1 µF | 1 µF | 1 µF | 1 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±20% | ±10% | ±10% |
| Voltage - Rated | 20 V | 25 V | 20 V | 20 V | 20 V | 10 V | 20 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1507 (3718 Metric) | 1507 (3718 Metric) | 1507 (3718 Metric) | 1507 (3718 Metric) | 1507 (3718 Metric) | 1507 (3718 Metric) | 1706 (4214 Metric) |
| Size / Dimension | 0.143" L x 0.072" W (3.63mm x 1.83mm) | 0.143" L x 0.072" W (3.63mm x 1.83mm) | 0.143" L x 0.072" W (3.63mm x 1.83mm) | 0.143" L x 0.072" W (3.63mm x 1.83mm) | 0.143" L x 0.072" W (3.63mm x 1.83mm) | 0.143" L x 0.072" W (3.63mm x 1.83mm) | 0.165" L x 0.055" W (4.20mm x 1.40mm) |
| Height - Seated (Max) | 0.056" (1.42mm) | 0.056" (1.42mm) | 0.056" (1.42mm) | 0.056" (1.42mm) | 0.056" (1.42mm) | 0.056" (1.42mm) | 0.063" (1.60mm) |
| Lead Spacing | - | - | - | - | - | - | - |
| Manufacturer Size Code | S | S | S | S | S | S | B |
| Ratings | - | - | - | - | - | - | - |
| Features | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - |
