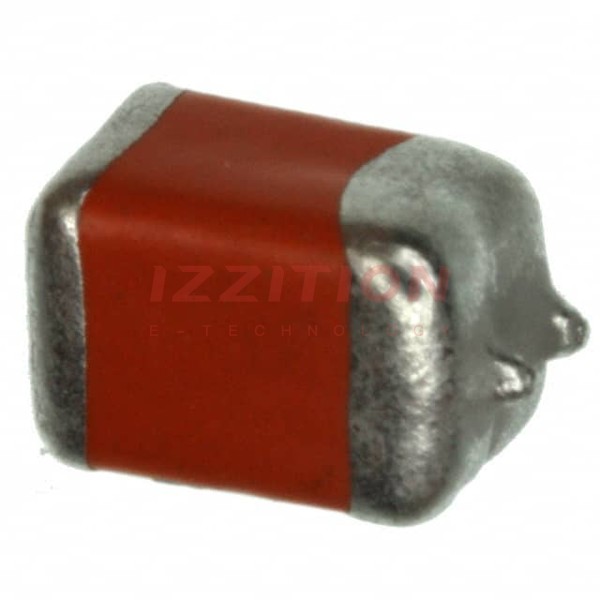

| Part Number | 13008-022KESA/HR | 13008-022KESB/HR | 13008-022KESC/HR | 13008-022KESZ/HR | 13008-022MESA/HR | 13008-023KESA/HR | 13008-032KESA/HR | 13008-012KESA/HR | 13008-020KESA/HR | 13008-021KESA/HR |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague | Vishay Sprague |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 680 µF | 680 µF | 680 µF | 680 µF | 680 µF | 1000 µF | 470 µF | 680 µF | 330 µF | 470 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±20% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 10 V | 10 V | 10 V | 10 V | 10 V | 10 V | 16 V | 6.3 V | 10 V | 10 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | 35mOhm | 35mOhm | 35mOhm | 35mOhm | 35mOhm | 120mOhm | 100mOhm | 25mOhm | 35mOhm | 35mOhm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3024 (7660 Metric) | 3024 (7660 Metric) | 3024 (7660 Metric) | 3024 (7660 Metric) | 3024 (7660 Metric) | 3024 (7660 Metric) | 3226 (8066 Metric) | 3017 (7644 Metric) | 3017 (7644 Metric) | 2917 (7343 Metric) |
| Size / Dimension | 0.299" L x 0.236" W (7.60mm x 6.00mm) | 0.299" L x 0.236" W (7.60mm x 6.00mm) | 0.299" L x 0.236" W (7.60mm x 6.00mm) | 0.299" L x 0.236" W (7.60mm x 6.00mm) | 0.299" L x 0.236" W (7.60mm x 6.00mm) | 0.299" L x 0.236" W (7.60mm x 6.00mm) | 0.315" L x 0.260" W (8.00mm x 6.60mm) | 0.299" L x 0.173" W (7.60mm x 4.40mm) | 0.299" L x 0.173" W (7.60mm x 4.40mm) | 0.299" L x 0.173" W (7.60mm x 4.40mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.201" (5.10mm) | 0.220" (5.60mm) | 0.173" (4.40mm) | 0.173" (4.40mm) | 0.173" (4.40mm) |
| Lead Spacing | - | - | - | - | - | - | - | - | - | - |
| Manufacturer Size Code | R | R | R | R | R | F | H | E | E | E |
| Ratings | COTS | COTS | COTS | COTS | COTS | COTS | COTS | COTS | COTS | COTS |
| Features | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
