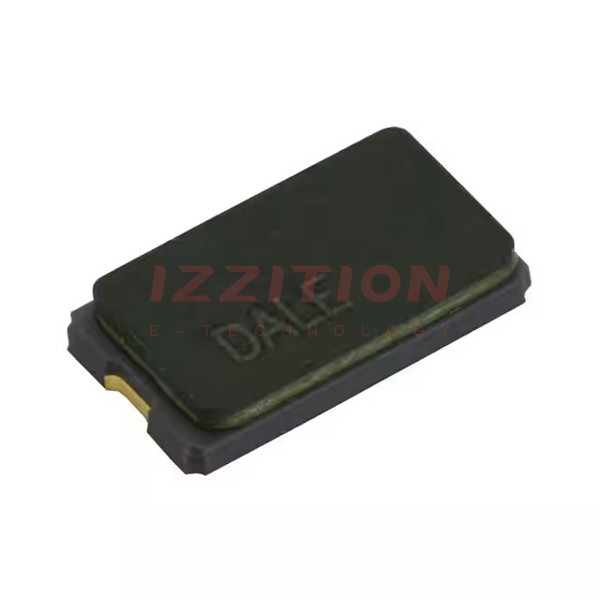

| Part Number | XT3620H10M | XT3620H12M | XT3620H50M | XT3620H20M |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | MHz Crystal | MHz Crystal | MHz Crystal | MHz Crystal |
| Frequency | 10 MHz | 12 MHz | 50 MHz | 20 MHz |
| Frequency Stability | ±50ppm | ±50ppm | ±50ppm | ±50ppm |
| Frequency Tolerance | ±50ppm | ±50ppm | ±50ppm | ±50ppm |
| Load Capacitance | 20pF | 20pF | 20pF | 20pF |
| ESR (Equivalent Series Resistance) | 110 Ohms | 50 Ohms | 100 Ohms | 25 Ohms |
| Operating Mode | Fundamental | Fundamental | 3rd Overtone | Fundamental |
| Operating Temperature | -10°C ~ 60°C | -10°C ~ 60°C | -10°C ~ 60°C | -10°C ~ 60°C |
| Ratings | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead |
| Size / Dimension | 0.315" L x 0.177" W (8.00mm x 4.50mm) | 0.315" L x 0.177" W (8.00mm x 4.50mm) | 0.315" L x 0.177" W (8.00mm x 4.50mm) | 0.315" L x 0.177" W (8.00mm x 4.50mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
