Please send RFQ , we will respond immediately.

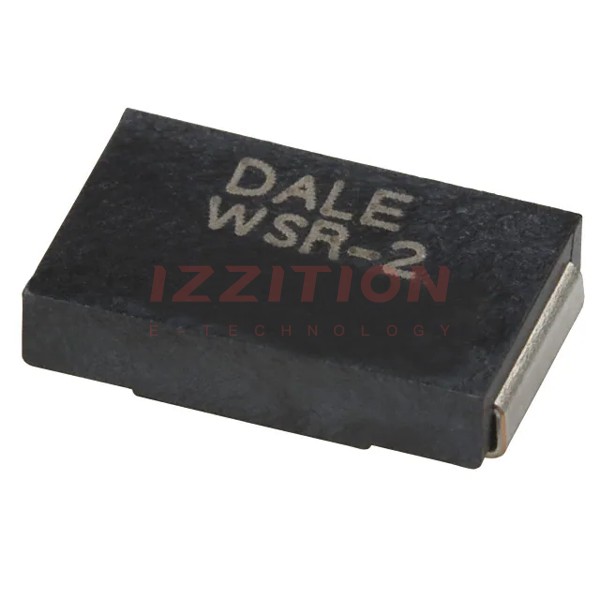

| Part Number | WSR5R1000FEA | WSR5R2000FEA | WSR5R1500FEA | WSR5R3000FEA | WSR5R1000FEB | WSR5R1070FEA | WSR5R1100FEA | WSR5R1200FEA | WSR5R1800FEA | WSR5R1000FEK | WSR5R1000FTA | WSR5R1000DEA | WSR5R1000FBA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 100 mOhms | 200 mOhms | 150 mOhms | 300 mOhms | 100 mOhms | 107 mOhms | 110 mOhms | 120 mOhms | 180 mOhms | 100 mOhms | 100 mOhms | 100 mOhms | 100 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±0.5% | ±1% |
| Power (Watts) | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W |
| Composition | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element |
| Features | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C |
| Operating Temperature | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C |
| Package / Case | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead |
| Supplier Device Package | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) |
| Height - Seated (Max) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - |
