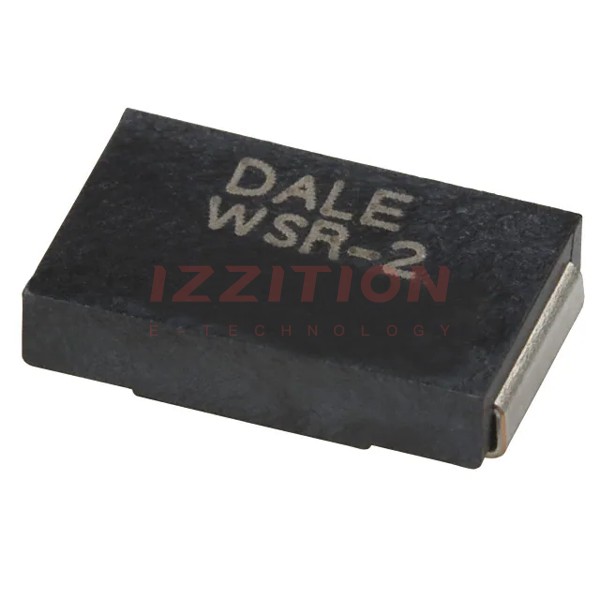

| Part Number | WSR23L000FEK | WSR25L000FEK | WSR26L000FEK | WSR27L000FEK | WSR28L000FEK | WSR29L000FEK | WSR23L000JEK | WSR23L300FEK | WSR23L500FEK | WSR24L000FEK | WSR21L000FEK | WSR22L000FEK | WSR23L000FEA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 3 mOhms | 5 mOhms | 6 mOhms | 7 mOhms | 8 mOhms | 9 mOhms | 3 mOhms | 3.3 mOhms | 3.5 mOhms | 4 mOhms | 1 MOhms | 2 MOhms | 3 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±5% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W | 2W |
| Composition | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element |
| Features | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±450ppm/°C | ±110ppm/°C | ±110ppm/°C | ±110ppm/°C | ±110ppm/°C | ±110ppm/°C | ±450ppm/°C | ±450ppm/°C | ±450ppm/°C | ±300ppm/°C | ±750ppm/°C | ±600ppm/°C | ±450ppm/°C |
| Operating Temperature | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C |
| Package / Case | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead | 4527 J-Lead |
| Supplier Device Package | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 | 4527 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) | 0.455" L x 0.275" W (11.56mm x 6.98mm) |
| Height - Seated (Max) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - |
