Please send RFQ , we will respond immediately.

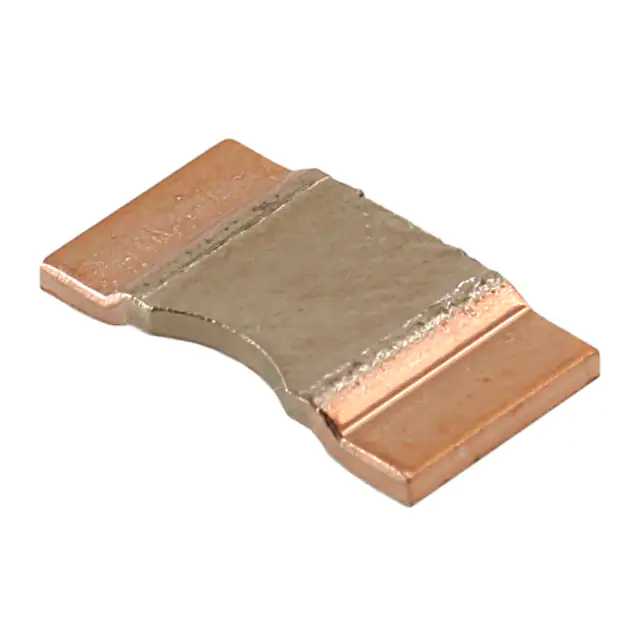

| Part Number | WSLF25121L000FEA | WSLF25121L000FEB | WSLF25121L000JEA | WSLF25121L500FEA | WSLF25122L000FEA | WSLF25123L000FEA | WSLF25121L300FEA | WSLF25121L000FEK |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 1 MOhms | 1 MOhms | 1 MOhms | 1.5 mOhms | 2 MOhms | 3 mOhms | 1.3 mOhms | 1 MOhms |
| Tolerance | ±1% | ±1% | ±5% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 5W | 5W | 3W | 6W | 5W | 4W | 3W | 5W |
| Composition | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±170ppm/°C | ±170ppm/°C | ±170ppm/°C | ±170ppm/°C | ±70ppm/°C | ±70ppm/°C | ±170ppm/°C | ±170ppm/°C |
| Operating Temperature | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C |
| Package / Case | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) |
| Supplier Device Package | 2512 | 2512 | 2512 | 2512 | 2512 | 2512 | 2512 | 2512 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.250" L x 0.119" W (6.35mm x 3.02mm) | 0.250" L x 0.119" W (6.35mm x 3.02mm) | 0.250" L x 0.119" W (6.35mm x 3.02mm) | 0.250" L x 0.119" W (6.35mm x 3.02mm) | 0.250" L x 0.119" W (6.35mm x 3.02mm) | 0.250" L x 0.119" W (6.35mm x 3.02mm) | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.250" L x 0.119" W (6.35mm x 3.02mm) |
| Height - Seated (Max) | 0.034" (0.86mm) | 0.034" (0.86mm) | 0.034" (0.86mm) | 0.015" (0.38mm) | 0.056" (1.42mm) | 0.038" (0.96mm) | 0.034" (0.86mm) | 0.034" (0.86mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - |
