WSL40261L000FEA
  • Share:

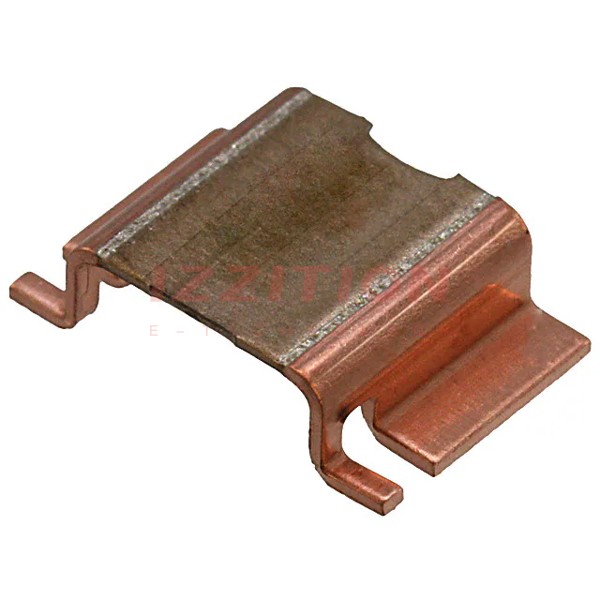

Vishay Dale WSL40261L000FEA

Manufacturer No:
WSL40261L000FEA
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
WSL40261L000FEA Datasheet
ECAD Model:
-
Description:
RES 0.001 OHM 1% 3W 4026
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:1 MOhms
Tolerance:±1%
Power (Watts):3W
Composition:Metal Element
Features:Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient:±75ppm/°C
Operating Temperature:-65°C ~ 170°C
Package / Case:Nonstandard
Supplier Device Package:4026
Ratings:AEC-Q200
Size / Dimension:0.400" L x 0.260" W (10.16mm x 6.60mm)
Height - Seated (Max):0.113" (2.88mm)
Number of Terminations:4
Failure Rate:-
0 Remaining View Similar

In Stock

$1.85
82

Please send RFQ , we will respond immediately.

Similar Products

Part Number WSL40261L000FEA WSL40261L000FEB   WSL40262L000FEA   WSL40263L000FEA   WSL40264L000FEA   WSL40265L000FEA   WSL40261L000FEK
Manufacturer Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale
Product Status Active Active Active Active Active Active Active
Resistance 1 MOhms 1 MOhms 2 MOhms 3 mOhms 4 mOhms 5 mOhms 1 MOhms
Tolerance ±1% ±1% ±1% ±1% ±1% ±1% ±1%
Power (Watts) 3W 3W 3W 3W 3W 3W 3W
Composition Metal Element Metal Element Metal Element Metal Element Metal Element Metal Element Metal Element
Features Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C ±75ppm/°C ±75ppm/°C ±75ppm/°C ±75ppm/°C ±75ppm/°C ±75ppm/°C
Operating Temperature -65°C ~ 170°C -65°C ~ 170°C -65°C ~ 170°C -65°C ~ 170°C -65°C ~ 170°C -65°C ~ 170°C -65°C ~ 170°C
Package / Case Nonstandard Nonstandard Nonstandard Nonstandard Nonstandard Nonstandard Nonstandard
Supplier Device Package 4026 4026 4026 4026 4026 4026 4026
Ratings AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200
Size / Dimension 0.400" L x 0.260" W (10.16mm x 6.60mm) 0.398" L x 0.260" W (10.10mm x 6.60mm) 0.400" L x 0.260" W (10.16mm x 6.60mm) 0.400" L x 0.260" W (10.16mm x 6.60mm) 0.400" L x 0.260" W (10.16mm x 6.60mm) 0.400" L x 0.260" W (10.16mm x 6.60mm) 0.400" L x 0.260" W (10.16mm x 6.60mm)
Height - Seated (Max) 0.113" (2.88mm) 0.113" (2.88mm) 0.122" (3.10mm) 0.118" (3.00mm) 0.118" (3.00mm) 0.118" (3.00mm) 0.113" (2.88mm)
Number of Terminations 4 4 4 4 4 4 4
Failure Rate - - - - - - -
