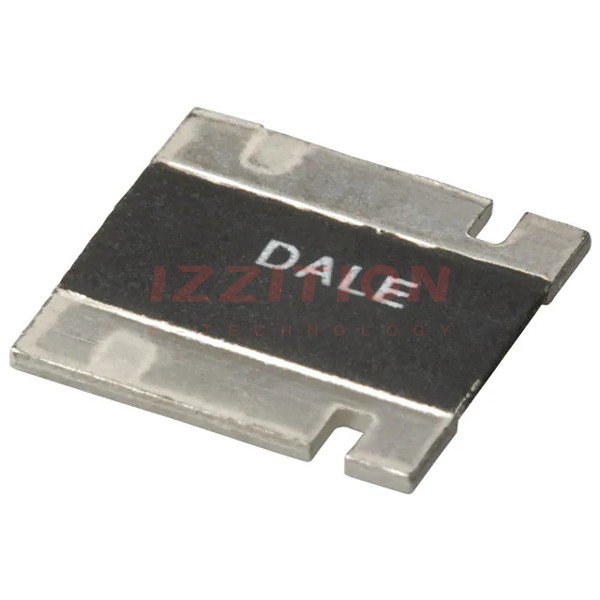

| Part Number | WSL36372L100FEA | WSL36372L800FEA | WSL36377L100FEA | WSL36372L200FEA | WSL36372L300FEA | WSL36372L500FEA | WSL36372L600FEA | WSL36372L700FEA | WSL36372L000FEA | WSL36372L100DEA |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 2.1 mOhms | 2.8 mOhms | 7.1 mOhms | 2.2 mOhms | 2.3 mOhms | 2.5 mOhms | 2.6 mOhms | 2.7 mOhms | 2 MOhms | 2.1 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±0.5% |
| Power (Watts) | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W | 3W |
| Composition | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element |
| Features | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±75ppm/°C | ±75ppm/°C | ±50ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C |
| Operating Temperature | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | 3637 | 3637 | 3637 | 3637 | 3637 | 3637 | 3637 | 3637 | 3637 | 3637 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.360" L x 0.370" W (9.14mm x 9.40mm) | 0.360" L x 0.370" W (9.14mm x 9.40mm) | 0.360" L x 0.370" W (9.14mm x 9.40mm) | 0.360" L x 0.370" W (9.14mm x 9.40mm) | 0.360" L x 0.370" W (9.14mm x 9.40mm) | 0.360" L x 0.370" W (9.14mm x 9.40mm) | 0.360" L x 0.370" W (9.14mm x 9.40mm) | 0.360" L x 0.370" W (9.14mm x 9.40mm) | 0.360" L x 0.370" W (9.14mm x 9.40mm) | 0.360" L x 0.370" W (9.14mm x 9.40mm) |
| Height - Seated (Max) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) |
| Number of Terminations | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
