WSL0805R2000DEA18
  • Share:

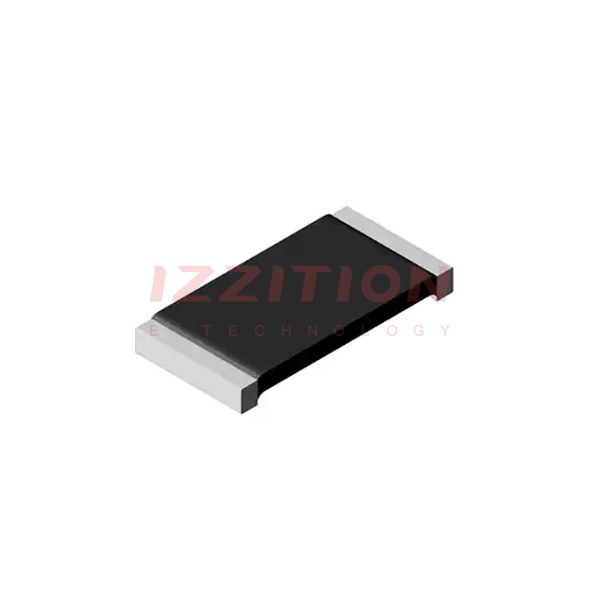

Vishay Dale WSL0805R2000DEA18

Manufacturer No:
WSL0805R2000DEA18
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
WSL0805R2000DEA18 Datasheet
ECAD Model:
-
Description:
RES 0.2 OHM 0.5% 1/4W 0805
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:200 mOhms
Tolerance:±0.5%
Power (Watts):0.25W, 1/4W
Composition:Metal Element
Features:Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient:±75ppm/°C
Operating Temperature:-65°C ~ 170°C
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805
Ratings:AEC-Q200
Size / Dimension:0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max):0.023" (0.58mm)
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$1.67
272

Please send RFQ , we will respond immediately.

Similar Products

Part Number WSL0805R2000DEA18 WSL0805R2000FEA18   WSL0805R2000JEA18   WSL0805R1000DEA18
Manufacturer Vishay Dale Vishay Dale Vishay Dale Vishay Dale
Product Status Active Active Active Active
Resistance 200 mOhms 200 mOhms 200 mOhms 100 mOhms
Tolerance ±0.5% ±1% ±5% ±0.5%
Power (Watts) 0.25W, 1/4W 0.25W, 1/4W 0.25W, 1/4W 0.25W, 1/4W
Composition Metal Element Metal Element Metal Element Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C ±75ppm/°C ±75ppm/°C ±75ppm/°C
Operating Temperature -65°C ~ 170°C -65°C ~ 170°C -65°C ~ 170°C -65°C ~ 170°C
Package / Case 0805 (2012 Metric) 0805 (2012 Metric) 0805 (2012 Metric) 0805 (2012 Metric)
Supplier Device Package 0805 0805 0805 0805
Ratings AEC-Q200 AEC-Q200 AEC-Q200 AEC-Q200
Size / Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm) 0.080" L x 0.050" W (2.03mm x 1.27mm) 0.080" L x 0.050" W (2.03mm x 1.27mm) 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max) 0.023" (0.58mm) 0.018" (0.46mm) 0.023" (0.58mm) 0.023" (0.58mm)
Number of Terminations 2 2 2 2
Failure Rate - - - -
