Please send RFQ , we will respond immediately.

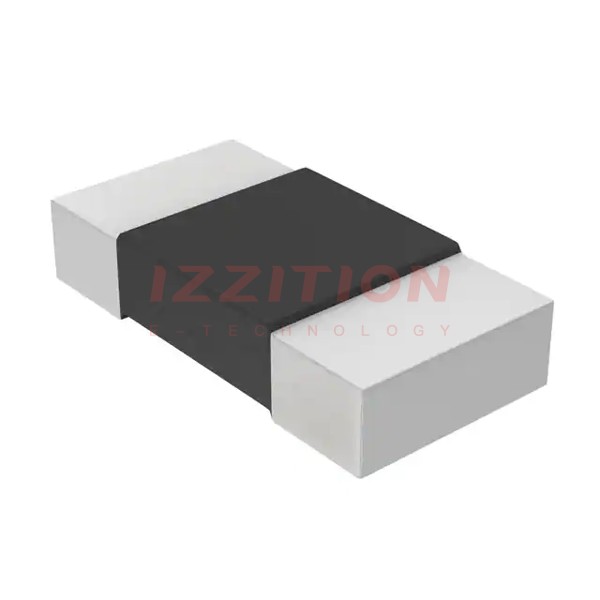

| Part Number | WSL0603R0500FEA18 | WSL0603R0100FEA18 | WSL0603R0200FEA18 | WSL0603R0300FEA18 | WSL0603R0400FEA18 |
|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active |
| Resistance | 50 mOhms | 10 mOhms | 20 mOhms | 30 mOhms | 40 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W | 0.2W, 1/5W |
| Composition | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C |
| Operating Temperature | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 | 0603 | 0603 | 0603 | 0603 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.060" L x 0.030" W (1.52mm x 0.76mm) | 0.060" L x 0.030" W (1.52mm x 0.76mm) | 0.060" L x 0.030" W (1.52mm x 0.76mm) | 0.060" L x 0.030" W (1.52mm x 0.76mm) | 0.060" L x 0.030" W (1.52mm x 0.76mm) |
| Height - Seated (Max) | 0.021" (0.53mm) | 0.021" (0.53mm) | 0.021" (0.53mm) | 0.021" (0.53mm) | 0.021" (0.53mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - |
