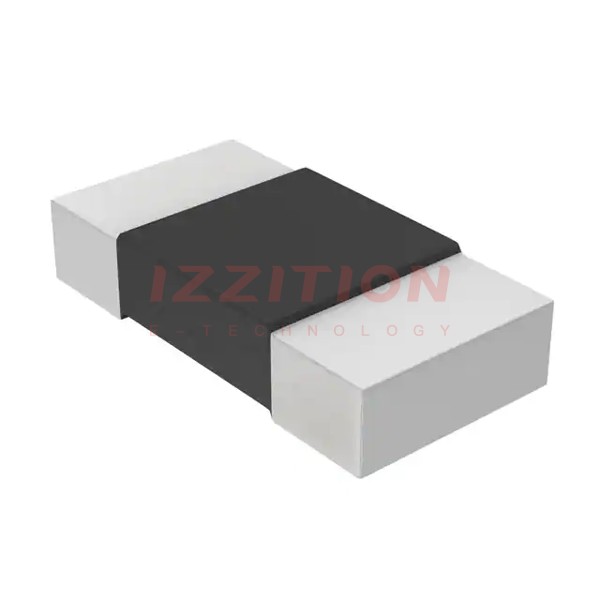

| Part Number | WSL0603R0500FEA | WSL0603R0600FEA | WSL0603R0900FEA | WSL0603R0700FEA | WSL0603R0510FEA | WSL0603R0800FEA | WSL0603R0100FEA | WSL0603R0200FEA | WSL0603R0300FEA | WSL0603R0400FEA | WSL0603R0500DEA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 50 mOhms | 60 mOhms | 90 mOhms | 70 mOhms | 51 mOhms | 80 mOhms | 10 mOhms | 20 mOhms | 30 mOhms | 40 mOhms | 50 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±0.5% |
| Power (Watts) | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W |
| Composition | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element |
| Features | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C |
| Operating Temperature | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.060" L x 0.030" W (1.52mm x 0.76mm) | 0.060" L x 0.030" W (1.52mm x 0.76mm) | 0.060" L x 0.030" W (1.52mm x 0.76mm) | 0.060" L x 0.030" W (1.52mm x 0.76mm) | 0.060" L x 0.030" W (1.52mm x 0.76mm) | 0.060" L x 0.030" W (1.52mm x 0.76mm) | 0.060" L x 0.030" W (1.52mm x 0.76mm) | 0.060" L x 0.030" W (1.52mm x 0.76mm) | 0.060" L x 0.030" W (1.52mm x 0.76mm) | 0.060" L x 0.030" W (1.52mm x 0.76mm) | 0.060" L x 0.030" W (1.52mm x 0.76mm) |
| Height - Seated (Max) | 0.021" (0.53mm) | 0.021" (0.53mm) | 0.021" (0.53mm) | 0.021" (0.53mm) | 0.021" (0.53mm) | 0.021" (0.53mm) | 0.021" (0.53mm) | 0.021" (0.53mm) | 0.021" (0.53mm) | 0.021" (0.53mm) | 0.021" (0.53mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - |
