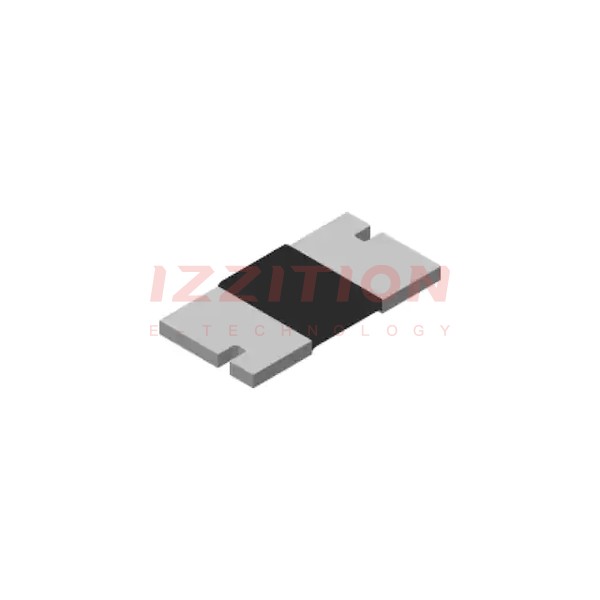

| Part Number | WSK2512R0100FEA | WSK2512R0200FEA | WSK2512R0100DEA |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Resistance | 10 mOhms | 20 mOhms | 10 mOhms |
| Tolerance | ±1% | ±1% | ±0.5% |
| Power (Watts) | 1W | 1W | 1W |
| Composition | Metal Element | Metal Element | Metal Element |
| Features | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Pulse Withstanding |
| Temperature Coefficient | ±35ppm/°C | ±35ppm/°C | ±35ppm/°C |
| Operating Temperature | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C |
| Package / Case | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) |
| Supplier Device Package | 2512 | 2512 | 2512 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.250" L x 0.125" W (6.35mm x 3.18mm) | 0.250" L x 0.125" W (6.35mm x 3.18mm) |
| Height - Seated (Max) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) |
| Number of Terminations | 4 | 4 | 4 |
| Failure Rate | - | - | - |
