Please send RFQ , we will respond immediately.

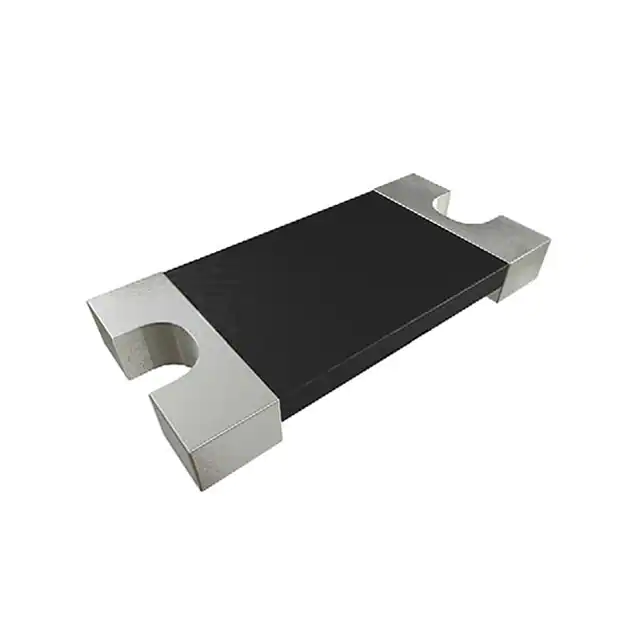

| Part Number | WSK1206R0330FEA18 | WSK1206R0340FEA18 | WSK1206R0350FEA18 | WSK1206R0360FEA18 | WSK1206R0370FEA18 | WSK1206R0380FEA18 | WSK1206R0390FEA18 | WSK1206R0430FEA18 | WSK1206R0130FEA18 | WSK1206R0230FEA18 | WSK1206R0300FEA18 | WSK1206R0310FEA18 | WSK1206R0320FEA18 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 33 mOhms | 34 mOhms | 35 mOhms | 36 mOhms | 37 mOhms | 38 mOhms | 39 mOhms | 43 mOhms | 13 mOhms | 23 mOhms | 30 mOhms | 31 mOhms | 32 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Composition | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element |
| Features | Current Sense, Moisture Resistant, Pulse Withstanding | Current Sense, Moisture Resistant, Pulse Withstanding | Current Sense, Moisture Resistant, Pulse Withstanding | Current Sense, Moisture Resistant, Pulse Withstanding | Current Sense, Moisture Resistant, Pulse Withstanding | Current Sense, Moisture Resistant, Pulse Withstanding | Current Sense, Moisture Resistant, Pulse Withstanding | Current Sense, Moisture Resistant, Pulse Withstanding | Current Sense, Moisture Resistant, Pulse Withstanding | Current Sense, Moisture Resistant, Pulse Withstanding | Current Sense, Moisture Resistant, Pulse Withstanding | Current Sense, Moisture Resistant, Pulse Withstanding | Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±35ppm/°C | ±35ppm/°C | ±35ppm/°C | ±35ppm/°C | ±35ppm/°C | ±35ppm/°C | ±35ppm/°C | ±35ppm/°C | ±35ppm/°C | ±35ppm/°C | ±35ppm/°C | ±35ppm/°C | ±35ppm/°C |
| Operating Temperature | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Supplier Device Package | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 | 1206 |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) | 0.035" (0.89mm) |
| Number of Terminations | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - | - |
