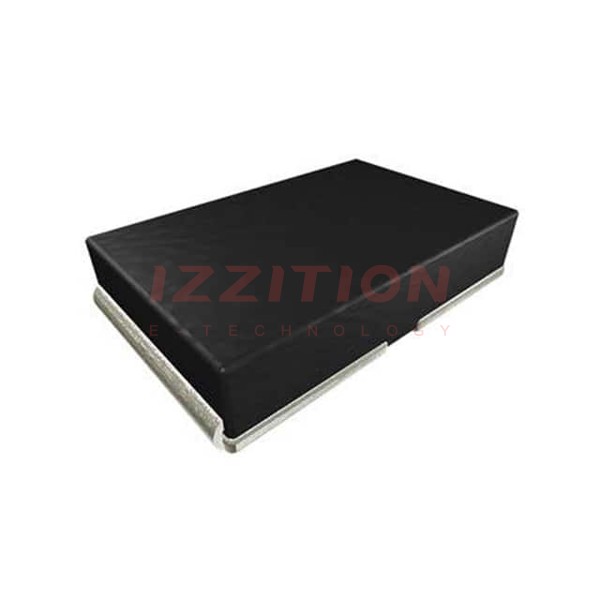

| Part Number | WSHP2818R0100FEA | WSHP2818R0400FEA | WSHP2818R0100FEB | WSHP2818R0500FEA | WSHP2818R0200FEA | WSHP2818R0150FEA |
|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active |
| Resistance | 10 mOhms | 40 mOhms | 10 mOhms | 50 mOhms | 20 mOhms | 15 mOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Power (Watts) | 10W | 10W | 10W | 10W | 10W | 10W |
| Composition | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element | Metal Element |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C | ±75ppm/°C |
| Operating Temperature | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C | -65°C ~ 170°C |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | 2818 | 2818 | 2818 | 2818 | 2818 | 2818 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.280" L x 0.181" W (7.10mm x 4.60mm) | 0.280" L x 0.181" W (7.10mm x 4.60mm) | 0.280" L x 0.181" W (7.10mm x 4.60mm) | 0.280" L x 0.181" W (7.10mm x 4.60mm) | 0.280" L x 0.181" W (7.10mm x 4.60mm) | 0.280" L x 0.181" W (7.10mm x 4.60mm) |
| Height - Seated (Max) | 0.069" (1.75mm) | 0.069" (1.75mm) | 0.069" (1.75mm) | 0.069" (1.75mm) | 0.069" (1.75mm) | 0.069" (1.75mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - |
