Please send RFQ , we will respond immediately.

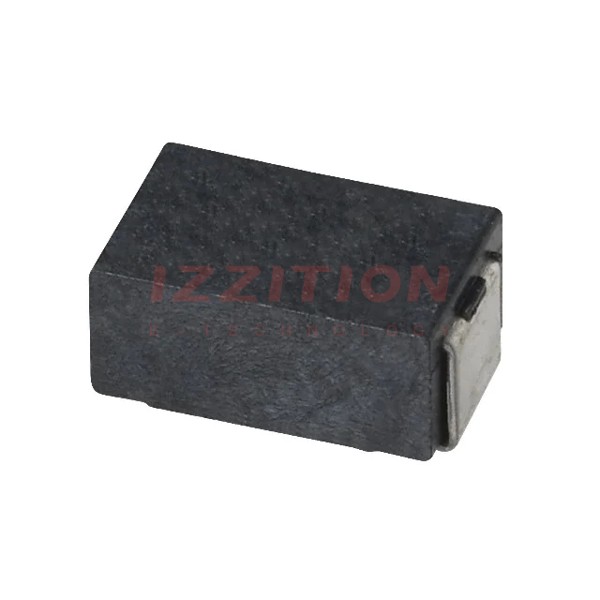

| Part Number | WSC25151R000FEA | WSC25151R000FTA | WSC25152R000FEA | WSC25155R000FEA | WSC25151R000JEA | WSC25151K000FEA |
|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active |
| Resistance | 1 Ohms | 1 Ohms | 2 Ohms | 5 Ohms | 1 Ohms | 1 kOhms |
| Tolerance | ±1% | ±1% | ±1% | ±1% | ±5% | ±1% |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding | Pulse Withstanding | Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding | Pulse Withstanding |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±20ppm/°C |
| Operating Temperature | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C |
| Package / Case | 2515 J-Lead | 2515 J-Lead | 2515 J-Lead | 2515 J-Lead | 2515 J-Lead | 2515 J-Lead |
| Supplier Device Package | 2515 | 2515 | 2515 | 2515 | 2515 | 2515 |
| Ratings | - | AEC-Q200 | - | - | AEC-Q200 | - |
| Size / Dimension | 0.250" L x 0.150" W (6.35mm x 3.81mm) | 0.250" L x 0.150" W (6.35mm x 3.81mm) | 0.250" L x 0.150" W (6.35mm x 3.81mm) | 0.250" L x 0.150" W (6.35mm x 3.81mm) | 0.250" L x 0.150" W (6.35mm x 3.81mm) | 0.250" L x 0.150" W (6.35mm x 3.81mm) |
| Height - Seated (Max) | 0.125" (3.17mm) | 0.125" (3.17mm) | 0.125" (3.17mm) | 0.125" (3.17mm) | 0.125" (3.17mm) | 0.125" (3.17mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - |
