Please send RFQ , we will respond immediately.

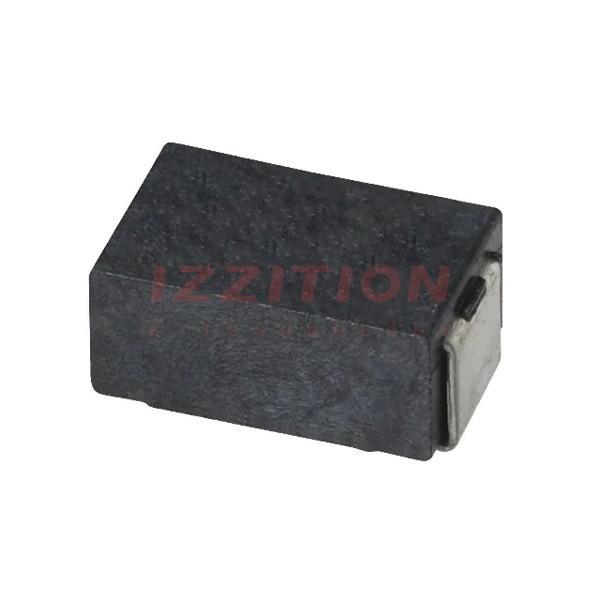

| Part Number | WSC251510R00FEA | WSC251550R00FEA | WSC251515R00FEA | WSC251510R00JEA | WSC251520R00FEA | WSC251510R00FTA |
|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active |
| Resistance | 10 Ohms | 50 Ohms | 15 Ohms | 10 Ohms | 20 Ohms | 10 Ohms |
| Tolerance | ±1% | ±1% | ±1% | ±5% | ±1% | ±1% |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W | 1W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Pulse Withstanding | Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding | Automotive AEC-Q200, Pulse Withstanding |
| Temperature Coefficient | ±50ppm/°C | ±20ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Operating Temperature | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C |
| Package / Case | 2515 J-Lead | 2515 J-Lead | 2515 J-Lead | 2515 J-Lead | 2515 J-Lead | 2515 J-Lead |
| Supplier Device Package | 2515 | 2515 | 2515 | 2515 | 2515 | 2515 |
| Ratings | - | - | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.250" L x 0.150" W (6.35mm x 3.81mm) | 0.250" L x 0.150" W (6.35mm x 3.81mm) | 0.250" L x 0.150" W (6.35mm x 3.81mm) | 0.250" L x 0.150" W (6.35mm x 3.81mm) | 0.250" L x 0.150" W (6.35mm x 3.81mm) | 0.250" L x 0.150" W (6.35mm x 3.81mm) |
| Height - Seated (Max) | 0.125" (3.17mm) | 0.125" (3.17mm) | 0.125" (3.17mm) | 0.125" (3.17mm) | 0.125" (3.17mm) | 0.125" (3.17mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - |
