WFPB39396L000FEB
  • Share:

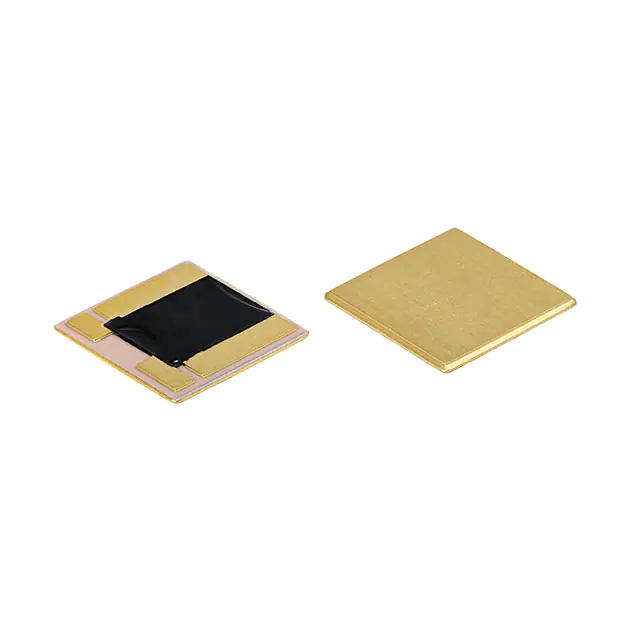

Vishay Dale WFPB39396L000FEB

Manufacturer No:
WFPB39396L000FEB
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
WFPB39396L000FEB Datasheet
ECAD Model:
-
Description:
RES 0.006 OHM 1% 20W 3939 WIREBO
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:6 mOhms
Tolerance:±1%
Power (Watts):20W
Composition:Metal Element
Features:Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient:±30ppm/°C
Operating Temperature:-65°C ~ 170°C
Package / Case:PFC10 (TO-126 SMT)
Supplier Device Package:-
Ratings:AEC-Q200
Size / Dimension:0.394" L x 0.394" W (10.01mm x 10.01mm)
Height - Seated (Max):0.030" (0.75mm)
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$3.34
220

Please send RFQ , we will respond immediately.

Similar Products

Part Number WFPB39396L000FEB WFPB39398L000FEB   WFPB39397L000FEB
Manufacturer Vishay Dale Vishay Dale Vishay Dale
Product Status Active Active Active
Resistance 6 mOhms 8 mOhms 7 mOhms
Tolerance ±1% ±1% ±1%
Power (Watts) 20W 20W 20W
Composition Metal Element Metal Element Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±30ppm/°C ±30ppm/°C ±30ppm/°C
Operating Temperature -65°C ~ 170°C -65°C ~ 170°C -65°C ~ 170°C
Package / Case PFC10 (TO-126 SMT) PFC10 (TO-126 SMT) PFC10 (TO-126 SMT)
Supplier Device Package - - -
Ratings AEC-Q200 AEC-Q200 AEC-Q200
Size / Dimension 0.394" L x 0.394" W (10.01mm x 10.01mm) 0.394" L x 0.394" W (10.01mm x 10.01mm) 0.394" L x 0.394" W (10.01mm x 10.01mm)
Height - Seated (Max) 0.030" (0.75mm) 0.030" (0.75mm) 0.030" (0.75mm)
Number of Terminations 2 2 2
Failure Rate - - -
