WFMA2512R0200FEA
  • Share:

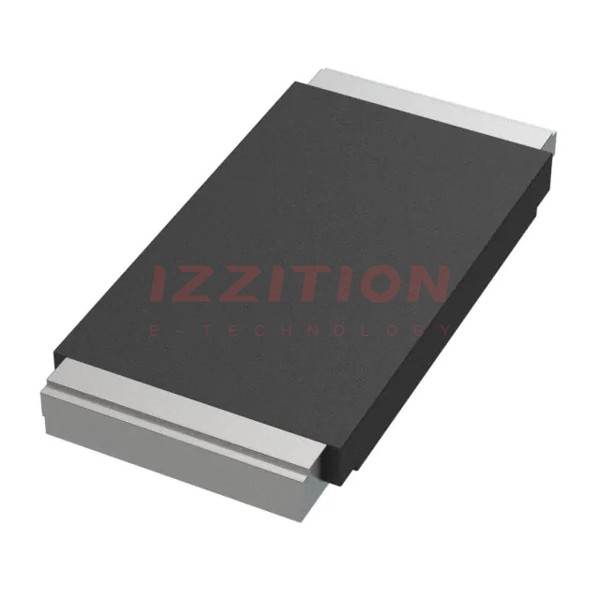

Vishay Dale WFMA2512R0200FEA

Manufacturer No:
WFMA2512R0200FEA
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
WFMA2512R0200FEA Datasheet
ECAD Model:
-
Description:
RES 0.02 OHM 3.0 W 1% 2512 SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:20 mOhms
Tolerance:±1%
Power (Watts):3W
Composition:Metal Film
Features:Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient:±110ppm/°C
Operating Temperature:-65°C ~ 170°C
Package / Case:2512 (6432 Metric)
Supplier Device Package:2512
Ratings:AEC-Q200
Size / Dimension:0.250" L x 0.125" W (6.35mm x 3.18mm)
Height - Seated (Max):0.026" (0.65mm)
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

$1.77
365

Please send RFQ , we will respond immediately.

Similar Products

Part Number WFMA2512R0200FEA WFMA2512R0250FEA   WFMA2512R0100FEA
Manufacturer Vishay Dale Vishay Dale Vishay Dale
Product Status Active Active Active
Resistance 20 mOhms 25 mOhms 10 mOhms
Tolerance ±1% ±1% ±1%
Power (Watts) 3W 3W 3W
Composition Metal Film Metal Film Metal Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant Automotive AEC-Q200, Current Sense, Moisture Resistant Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±110ppm/°C ±110ppm/°C ±110ppm/°C
Operating Temperature -65°C ~ 170°C -65°C ~ 170°C -65°C ~ 170°C
Package / Case 2512 (6432 Metric) 2512 (6432 Metric) 2512 (6432 Metric)
Supplier Device Package 2512 2512 2512
Ratings AEC-Q200 AEC-Q200 AEC-Q200
Size / Dimension 0.250" L x 0.125" W (6.35mm x 3.18mm) 0.250" L x 0.125" W (6.35mm x 3.18mm) 0.250" L x 0.125" W (6.35mm x 3.18mm)
Height - Seated (Max) 0.026" (0.65mm) 0.026" (0.65mm) 0.026" (0.65mm)
Number of Terminations 2 2 2
Failure Rate - - -
