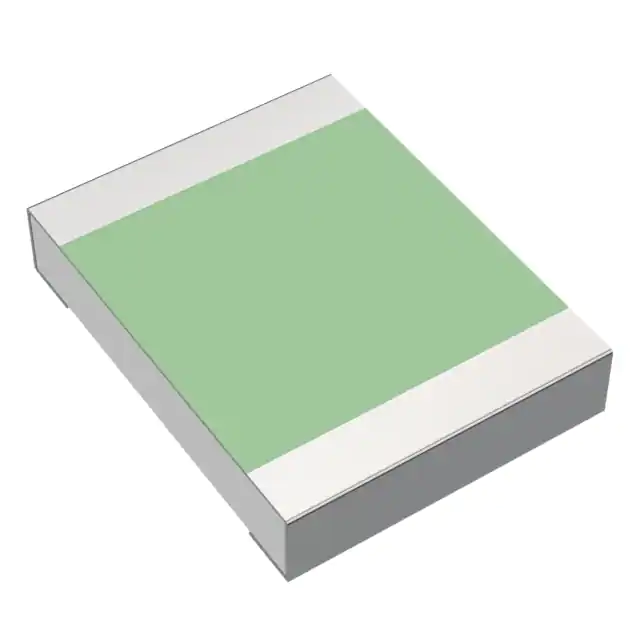

| Part Number | TNPW12101M80BEEA | TNPW12101M82BEEA | TNPW12101M87BEEA | TNPW12101M80BETA | TNPW12101M80BEEN | TNPW12101M00BEEA | TNPW12101M10BEEA | TNPW12101M20BEEA | TNPW12101M30BEEA | TNPW12101M40BEEA | TNPW12101M50BEEA | TNPW12101M60BEEA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 1.8 mOhms | 1.82 MOhms | 1.87 MOhms | 1.8 mOhms | 1.8 mOhms | 1 MOhms | 1.1 mOhms | 1.2 mOhms | 1.3 mOhms | 1.4 mOhms | 1.5 mOhms | 1.6 mOhms |
| Tolerance | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% |
| Power (Watts) | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W | 0.333W, 1/3W |
| Composition | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film |
| Features | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | Military | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant |
| Temperature Coefficient | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 125°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | 1210 | 1210 | 1210 | 1210 | 1210 | 1210 | 1210 | 1210 | 1210 | 1210 | 1210 | 1210 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | - | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.126" L x 0.096" W (3.20mm x 2.45mm) | 0.126" L x 0.096" W (3.20mm x 2.45mm) | 0.126" L x 0.096" W (3.20mm x 2.45mm) | 0.126" L x 0.096" W (3.20mm x 2.45mm) | 0.126" L x 0.096" W (3.20mm x 2.45mm) | 0.126" L x 0.096" W (3.20mm x 2.45mm) | 0.126" L x 0.096" W (3.20mm x 2.45mm) | 0.126" L x 0.096" W (3.20mm x 2.45mm) | 0.126" L x 0.096" W (3.20mm x 2.45mm) | 0.126" L x 0.096" W (3.20mm x 2.45mm) | 0.126" L x 0.096" W (3.20mm x 2.45mm) | 0.126" L x 0.096" W (3.20mm x 2.45mm) |
| Height - Seated (Max) | 0.030" (0.75mm) | 0.030" (0.75mm) | 0.030" (0.75mm) | 0.030" (0.75mm) | 0.030" (0.75mm) | 0.030" (0.75mm) | 0.030" (0.75mm) | 0.030" (0.75mm) | 0.030" (0.75mm) | 0.030" (0.75mm) | 0.030" (0.75mm) | 0.030" (0.75mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - |
