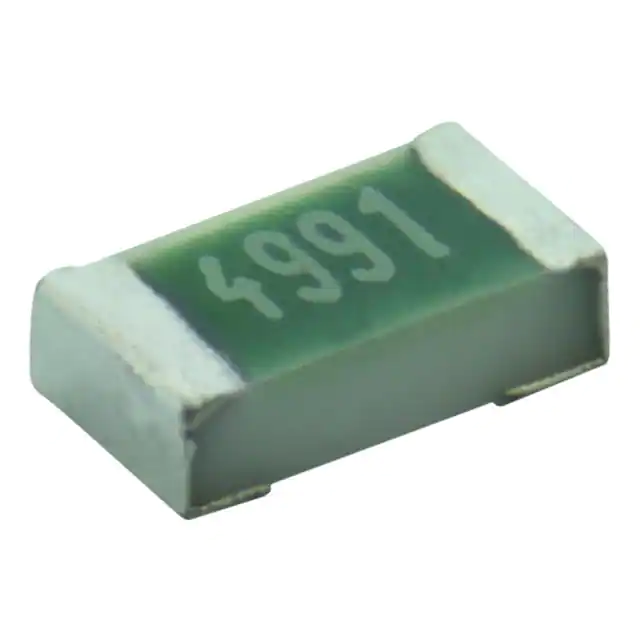

| Part Number | TNPW060316K9BHEA | TNPW060316K9FHEA | TNPW060316K9BXEA | TNPW060316K9BYEA | TNPW060316K9BHTA | TNPW060316K2BHEA | TNPW060316K5BHEA | TNPW060316K7BHEA | TNPW060316K9BEEA |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 16.9 kOhms | 16.9 kOhms | 16.9 kOhms | 16.9 kOhms | 16.9 kOhms | 16.2 kOhms | 16.5 kOhms | 16.7 kOhms | 16.9 kOhms |
| Tolerance | ±0.1% | ±1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% | ±0.1% |
| Power (Watts) | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W | 0.1W, 1/10W |
| Composition | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film | Thin Film |
| Features | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | Military | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C | ±15ppm/°C | ±10ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±25ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 125°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 | 0603 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | - | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.061" L x 0.033" W (1.55mm x 0.85mm) | 0.061" L x 0.033" W (1.55mm x 0.85mm) | 0.061" L x 0.033" W (1.55mm x 0.85mm) | 0.061" L x 0.033" W (1.55mm x 0.85mm) | 0.061" L x 0.033" W (1.55mm x 0.85mm) | 0.061" L x 0.033" W (1.55mm x 0.85mm) | 0.061" L x 0.033" W (1.55mm x 0.85mm) | 0.061" L x 0.033" W (1.55mm x 0.85mm) | 0.063" L x 0.033" W (1.60mm x 0.85mm) |
| Height - Seated (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - |
